Product Description

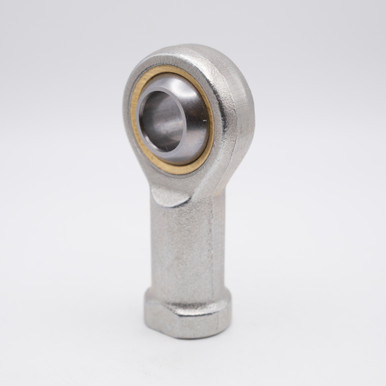

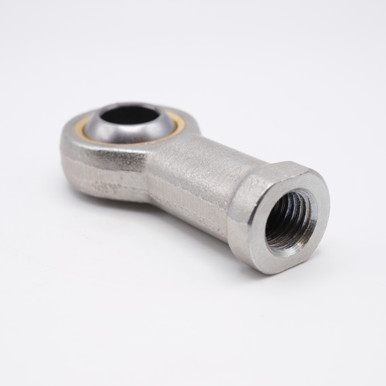

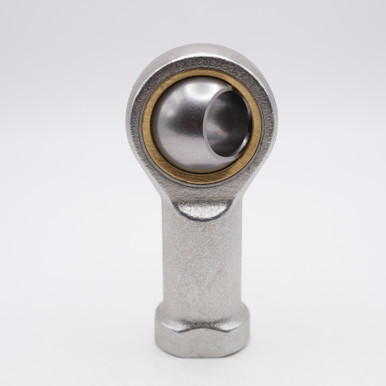

PHS16 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR16-PB bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M16 Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
Match#: GIKR16-PB, SIKOC16M, CW-M16, MW-M16, AW-M16, PHSA16
Product Videos
Custom Field
Bore Size 16mm
Base to Center 64mm
Thread M16x2
Overall Height 83mm
Outer Diameter 38mm
Static Load 5,710 lbs
Dynamic Load 4,721 lbs
Thread Direction Right Hand
Interchange Numbers GIKR16-PB, SIKOC16M, CW-M16, MW-M16, AW-M16, PHSA16
