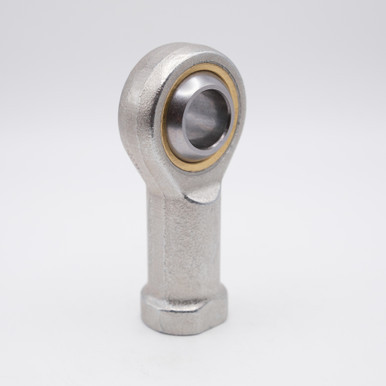

  • PHS16L Rod-End Bearing Left Hand 16mm Bore Left Angled View
  • PHS16L Rod-End Bearing Left Hand 16mm Bore Front View
  • PHS16L Rod-End Bearing Left Hand 16mm Bore Angled Bore View

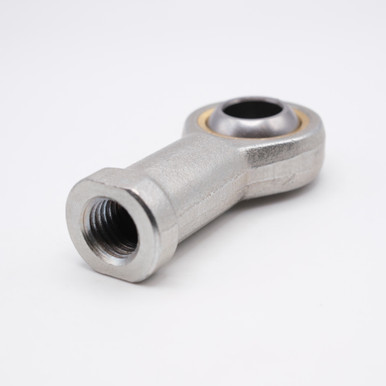

  • PHS16L Rod-End Bearing Left Hand 16mm Bore Flat Right Angled View

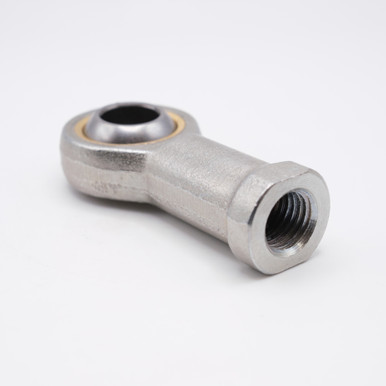

  • PHS16L Rod-End Bearing Left Hand 16mm Bore Flat Left Angled View
  • PHS16L Rod-End Bearing Left Hand 16mm Bore Bottom View

    • PHS16L 16mm Lubrication Type PilloBall Female Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS16L
    Minimum Purchase:
    100 units
    Bore Size:
    16mm
    Base to Center:
    64mm
    Thread:
    M16x2
    Overall Height:
    83mm
    Outer Diameter:
    38mm
    Static Load:
    5,710 lbs
    Dynamic Load:
    4,721 lbs
    Thread Direction:
    Left Hand
    Interchange Numbers:
    GIKR16-PBL, SIKOC16ML, CG-M16, MG-M16, AG-M16, PHSA16L

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS16L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR16-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M16L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR16-PBL, SIKOC16ML, CG-M16, MG-M16, AG-M16, PHSA16L

    Product Videos

    Custom Field

    Bore Size 16mm
    Base to Center 64mm
    Thread M16x2
    Overall Height 83mm
    Outer Diameter 38mm
    Static Load 5,710 lbs
    Dynamic Load 4,721 lbs
    Thread Direction Left Hand
    Interchange Numbers GIKR16-PBL, SIKOC16ML, CG-M16, MG-M16, AG-M16, PHSA16L
