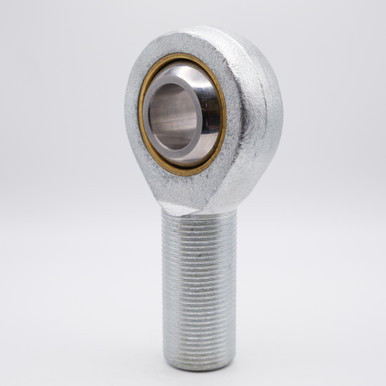

• 16mm POS16 Rod-End Bearing Right Angled View

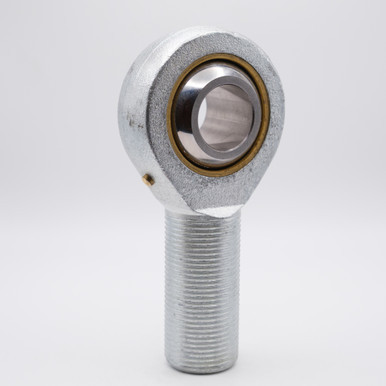

  • 16mm POS16 Rod-End Bearing Left Angled View
  • 16mm POS16 Rod-End Bearing Angled Bore View
  • 16mm POS16 Rod-End Bearing Front View
  • 16mm POS16 Rod-End Bearing Right Hand SM16 SAKAC16M Side View

    • POS16 16mm Lubrication Type PilloBall Male Rod End Bearing Right Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    POS16
    Minimum Purchase:
    100 units
    Bore Size:
    16mm
    Base to Center:
    66mm
    Thread:
    M16x2
    Overall Height:
    85mm
    Outer Diameter:
    38mm
    Static Load:
    5,710 lbs
    Dynamic Load:
    4,721 lbs
    Thread Direction:
    Right Hand
    Interchange Numbers:
    GAKFR16PB, SAKAC16M, SM16, GAKR16PB, SAKOC16M, SM-16, CM-M16, DWTM16, MM-M16, AM-M16, POS-16NP, GAKR16-PB, EM-M16, MCMR16, GAKFR16-PB

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    POS16 Bearing is Male Zinc Plated Rod End PilloBall Insert Type with Right Handed Thread Ball Joint Bearing, Chrome Steel, Protective Coated for Corrosion Resistance

    POS16 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MM-M16 bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. SM14 Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GAKFR16PB, SAKAC16M, SM16, GAKR16PB, SAKOC16M, SM-16, CM-M16, DWTM16, MM-M16, AM-M16, POS-16NP, GAKR16-PB, EM-M16, MCMR16, GAKFR16-PB

    Product Videos

    Custom Field

    Bore Size 16mm
    Base to Center 66mm
    Thread M16x2
    Overall Height 85mm
    Outer Diameter 38mm
    Static Load 5,710 lbs
    Dynamic Load 4,721 lbs
    Thread Direction Right Hand
    Interchange Numbers GAKFR16PB, SAKAC16M, SM16, GAKR16PB, SAKOC16M, SM-16, CM-M16, DWTM16, MM-M16, AM-M16, POS-16NP, GAKR16-PB, EM-M16, MCMR16, GAKFR16-PB
