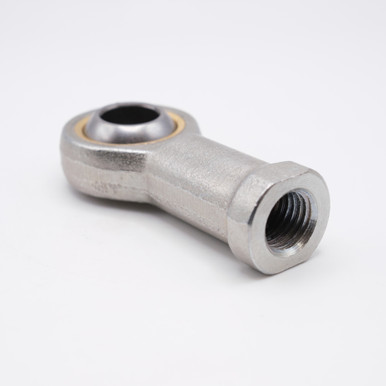

    PHS4 4mm Lubrication Type PilloBall Female Rod End Bearing Right Hand Thread

    (You save )
    (No reviews yet) Write a Review
    SKU:
    PHS4
    Minimum Purchase:
    50 units
    Bore Size:
    4mm
    Base to Center:
    24mm
    Thread:
    M4x0.7
    Overall Height:
    31mm
    Outer Diameter:
    14mm
    Static Load:
    1,052 lbs
    Dynamic Load:
    558 lbs
    Thread Direction:
    Right Hand
    Interchange Numbers:
    GIKR04-PB, SIKOC04M, CW-M04, MW-M04, AW-M04, PHSA04

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    PHS4 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR4-PB bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M4 Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR04-PB, SIKOC04M, CW-M04, MW-M04, AW-M04, PHSA04

    Product Videos

    Custom Field

    Bore Size 4mm
    Base to Center 24mm
    Thread M4x0.7
    Overall Height 31mm
    Outer Diameter 14mm
    Static Load 1,052 lbs
    Dynamic Load 558 lbs
    Thread Direction Right Hand
    Interchange Numbers GIKR04-PB, SIKOC04M, CW-M04, MW-M04, AW-M04, PHSA04
