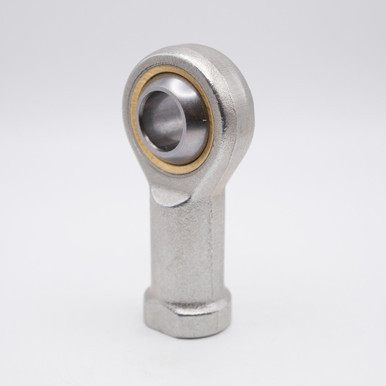

• PHS22 Rod-End Bearing Right Hand 22mm Bore Right Angled View
  • PHS22 Rod-End Bearing Right Hand 22mm Bore Left Angled View

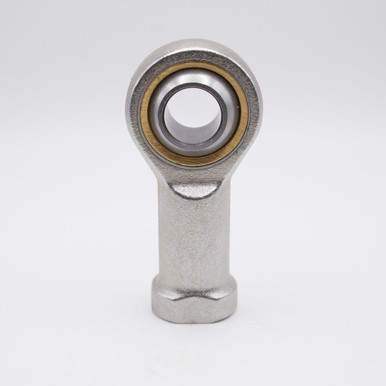

  • PHS22 Rod-End Bearing Right Hand 22mm Bore Front View

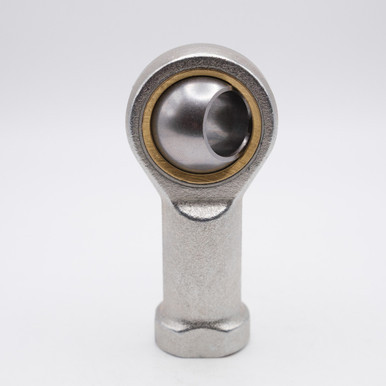

  • PHS22 Rod-End Bearing Right Hand 22mm Bore Angled Bore View
  • PHS22 Rod-End Bearing Right Hand 22mm Bore Flat Right View
  • PHS22 Rod-End Bearing Right Hand 22mm Bore Flat Left View
  • PHS22 Rod-End Bearing Right Hand 22mm Bore Bottom View

    • PHS22 22mm Lubrication Type PilloBall Female Rod End Bearing Right Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS22
    Minimum Purchase:
    100 units
    Bore Size:
    22mm
    Base to Center:
    84mm
    Thread:
    M22x1.5
    Overall Height:
    109mm
    Outer Diameter:
    50mm
    Static Load:
    9,375 lbs
    Dynamic Load:
    8,408 lbs
    Thread Direction:
    Right Hand
    Interchange Numbers:
    GIKR20-PB, SIKOC20M, CW-M20, MW-M20, AW-M20, PHSA20

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS22 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR22-PB bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M22 Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR22-PB, SIKOC22M, CW-M22, MW-M22, AW-M22, PHSA22

    Product Videos

    Custom Field

    Bore Size 22mm
    Base to Center 84mm
    Thread M22x1.5
    Overall Height 109mm
    Outer Diameter 50mm
    Static Load 9,375 lbs
    Dynamic Load 8,408 lbs
    Thread Direction Right Hand
    Interchange Numbers GIKR20-PB, SIKOC20M, CW-M20, MW-M20, AW-M20, PHSA20
