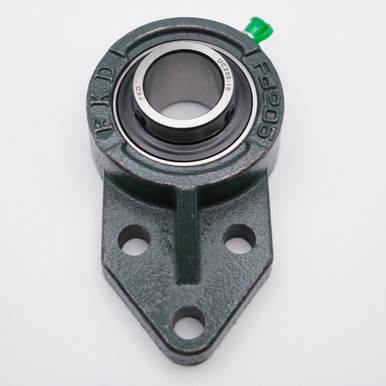

• UCFB208-25 3 Bolt Bracket Flange w/Set Screw Locking Ball Bearing Shaft Size 1-9/16 Front View

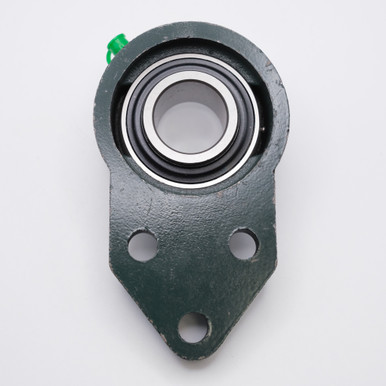

  • UCFB208-25 3 Bolt Bracket Flange w/Set Screw Locking Ball Bearing Shaft Size 1-9/16 Back View

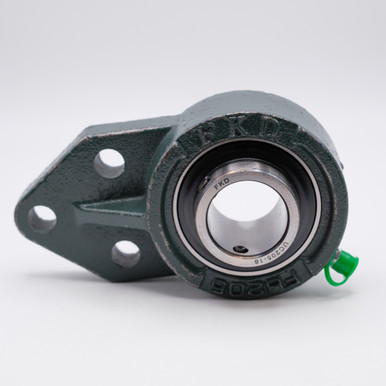

  • UCFB208-25 3 Bolt Bracket Flange w/Set Screw Locking Ball Bearing Shaft Size 1-9/16 Side View
  • UCFB208-25 3 Bolt Bracket Flange w/Set Screw Locking Ball Bearing Shaft Size 1-9/16 Side View
  • UCFB208-25 3 Bolt Bracket Flange w/Set Screw Locking Ball Bearing Shaft Size 1-9/16 Side View
  • UCFB208-25 3 Bolt Bracket Flange w/Set Screw Locking Ball Bearing Shaft Size 1-9/16 Side View
  • UCFB208-25 3 Bolt Bracket Flange w/Set Screw Locking Ball Bearing Shaft Size 1-9/16 Side View

    • UCFB208-25 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 1-9/16

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    UCFB208-25
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-9/16"
    Overall Length:
    3-15/16"
    Overall Height:
    6-29/64"
    Bolt Hole to Bolt Hole:
    1-31/32"
    Base to Center:
    2-23/64"
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    4,078 lbs
    Dynamic Load:
    6,650 lbs
    Speed Limit:
    4,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    MFB-40, UCFH208-D1
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCFB208-25 3-Bolt Flange Unit

    Key Features

    UCFB208-25 3-Bolt Flange Bearing Unit has a combination of a cast iron 3-bolt bracket flange unit and a chrome steel set screw locking insert bearing. This specific 3-Bolt Flange Bearing Unit has a shape of a chevron flange which has a special configuration on conveyors. The insert ball bearing has been made with a wide inner ring and has been equipped with two set screws, located on the extended inner ring, for the attachment of a shaft. Our Mounted Block Units are pre-lubricated with Grease, allowing them to be ready for immediate use upon arrival.

    Applications / Industries

    UCFB208-25 Mounted Blocks are used in a variety of applications such as Construction Equipment, Pumps, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, HVAC Systems, Feed Mills, Agricultural Equipment and other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 1-9/16"
    Overall Length 3-15/16"
    Overall Height 6-29/64"
    Bolt Hole to Bolt Hole 1-31/32"
    Base to Center 2-23/64"
    Housing Material Cast Iron
    Bearing Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 4,078 lbs
    Dynamic Load 6,650 lbs
    Speed Limit 4,000 RPM
    Country of Origin China
    Interchange Numbers MFB-40, UCFH208-D1
