4 Bolt Flange Bearings

UCFC206-17 Round Flange Housing 4 Bolt w/ Set Screw Ball Bearing Shaft Size 1-1/16

SKU: UCFC206-17
  • Free shipping on most orders
  • Ships from Glendale, CA

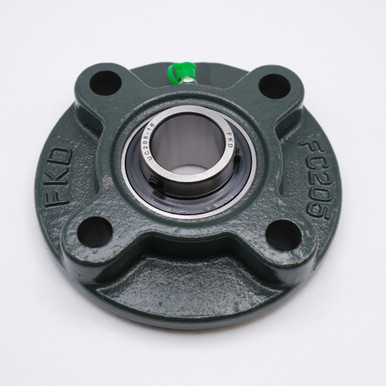

  • UCFC206-17 Round Flange Housing 4 Bolt w/ Set Screw Ball Bearing Shaft Size 1-1/16" Top View

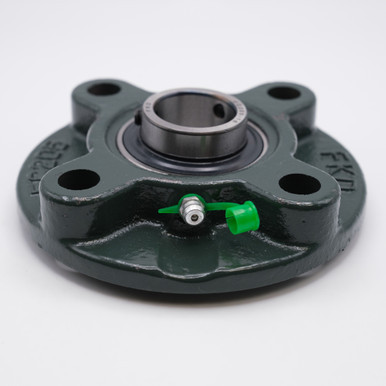

  • UCFC206-17 Round Flange Housing 4 Bolt w/ Set Screw Ball Bearing Shaft Size 1-1/16" Side View
  • UCFC206-17 Round Flange Housing 4 Bolt w/ Set Screw Ball Bearing Shaft Size 1-1/16" Bottom View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1-1/16"
    Overall Length4-59/64"
    Bolt-hole spacing2-25/32"

    Construction

    Bearing MaterialChrome Steel SAE-52100
    Housing MaterialCast Iron
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load2,570 lbs
    Dynamic Load4,377 lbs
    Speed Limit5,300 RPM

    Interchange numbers 4

    • EWFC-206-17S
    • UCFC-206-17S
    • UCFC-206-101T
    • UELFC-206-101T
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    UCFC206-17 Round Flanged 4-Bolt Unit Bearing

    Key Features

    UCFC206-17 is a UCFC200 Cast Iron 4-Bolt Round Flange Housing with a Set Screw Locking Insert Ball Bearing. This UCFC206-17 Cast Iron 4-Bolt Flange Unit features two set screws found on the extended end of the inner ring on the insert which are used to attach and lock onto sliding shafts. This unit is also equipped with Grease Feeding Access to allow for re-lubrication of the bearing. Our Mounted Block Units are pre-lubricated with grease to allow it to be ready to use upon arrival.

    Applications / Industries

    UCFC206-17 Mounted Blocks are used in a variety of applications such as Agricultural Equipment, Automotives, Printing Industry, Pumps, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor Systems, Fan Assemblies, HVAC Systems, among other Industrial Applications.
