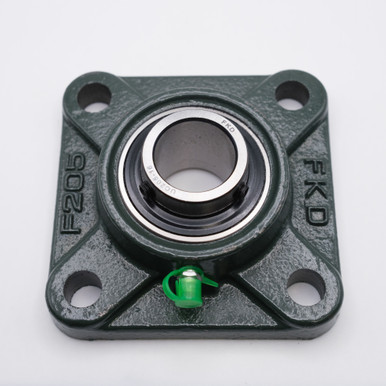

• UCFX07-20 Set Screw Locking 4-Bolt Flanged Unit 1-1/4" Top View

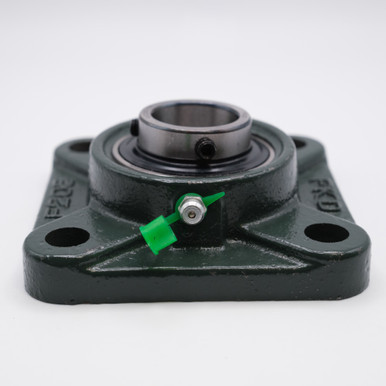

  • UCFX07-20 Set Screw Locking 4-Bolt Flanged Unit 1-1/4" Side View
  • UCFX07-20 Set Screw Locking 4-Bolt Flanged Unit 1-1/4" Angled Side View
  • UCFX07-20 Set Screw Locking 4-Bolt Flanged Unit 1-1/4" Bottom View

    • UCFX07-20 Set Screw Locking 4-Bolt Flanged Unit 1-1/4"

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    UCFX07-20
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-1/4"
    Overall Length:
    5-1/8"
    Overall Height:
    4"
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    4,020 lbs
    Dynamic Load:
    6,590 lbs
    Speed Limit:
    4,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    UCFX07-20, VF4S-320, F4B-SCM-104, UCFX207-104T, MSF-20, FYM-1-1/4-TM
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCFX07-20 Set Screw Locking 4-Bolt Flanged Unit

    Key Features

    UCFX07-20 is a 4-Bolt Flange Unit with a wider inner ring with two set screws. This unit features a Cast Iron 4-Bolt Flange Housing and a Chrome Steel Insert, complete with a slinger seal design and an anti-rotation device. The insert has been manufactured with two set screws, located on the extended inner ring, which can be tightened onto a shaft. This mounted block unit has been equipped with a grease feed, allowing for re-lubrication of the bearing if necessary. Our UCFX07-20 Mounted Block Bearings are pre-lubricated with Grease, allowing them to be ready for immediate use upon arrival.

    Applications / Industries

    UCFX07-20 Mounted Blocks are used in a variety of applications such as Construction Equipment, Pumps, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, HVAC Systems, Feed Mills, Agricultural Equipment and other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 1-1/4"
    Overall Length 5-1/8"
    Overall Height 4"
    Housing Material Cast Iron
    Bearing Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 4,020 lbs
    Dynamic Load 6,590 lbs
    Speed Limit 4,000 RPM
    Country of Origin China
    Interchange Numbers UCFX07-20, VF4S-320, F4B-SCM-104, UCFX207-104T, MSF-20, FYM-1-1/4-TM
