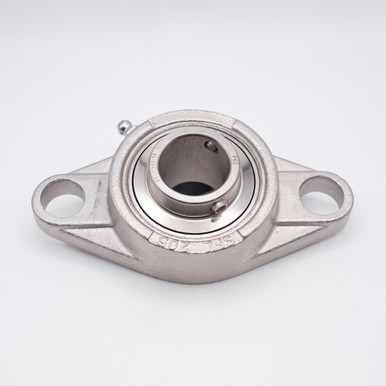

• SUCSFL208-25 Stainless Steel 2 Bolt Oval Flange Unit 1-9/16" Bore Top View

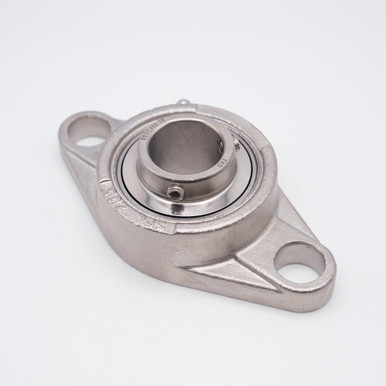

  • SUCSFL208-25 Stainless Steel 2 Bolt Oval Flange Unit 1-9/16" Bore Side View
  • SUCSFL208-25 Stainless Steel 2 Bolt Oval Flange Unit 1-9/16" Bore Grease Feed View

    • SUCSFL208-25 Stainless Steel 2 Bolt Oval Flange w/ Set Screw Bearing Shaft Size 1-9/16

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SUCSFL208-25
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-9/16"
    Overall Length:
    6-57/64"
    Overall Height:
    3-15/16"
    Bolt Hole to Bolt Hole:
    5-43/64"
    Housing Material:
    Stainless Steel AISI-440C
    Insert Material:
    Stainless Steel AISI-440C
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    3,057 lbf
    Dynamic Load:
    5,294 lbf
    Speed Limit:
    4,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    SUCSFL208-25XEH1S6, S2F100SS-1-9/16, SF2S-1-9/16

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SUCSFL208-25 2-Bolt Stainless Steel Flange Unit

    Key Features

    SUCSFL208-25 is a SUCSFL200 Series 2-Bolt Flange Stainless Steel Unit equipped with a Set Screw Locking Insert Ball Bearing. This kind of bearing is primarily designed to minimize friction between parts and allow unrestricted rotation of moving elements. Made from Stainless Steel AISI-440C, this bearing is resistant to corrosion from moisture and do not experience any flaking, breaking, deformation, or discolouration problems that are common with other non corrosion-resistant housing materials. This Flange Mounted Block Unit features two set screws, found on the extended end of the inserts inner ring, which can be tightened onto a shaft. This unit has also been made with grease feed access, allowing for re-lubrication of the insert if necessary. Our SUCSFL208-25 are pre-lubricated with grease ensuring the product is ready for use upon arrival.

    Applications / Industries

    SUCSFL208-25 2-Bolt Flange Stainless Steel Units are widely used in various Manufacturing Equipment, Agricultural Machinery, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Salt Water Desalination Plants, Food Handling Industry, Pumps, Water Treatment Plants, among others.

    Product Videos

    Custom Field

    Inner Diameter 1-9/16"
    Overall Length 6-57/64"
    Overall Height 3-15/16"
    Bolt Hole to Bolt Hole 5-43/64"
    Housing Material Stainless Steel AISI-440C
    Insert Material Stainless Steel AISI-440C
    Lubrication Chevron SRI-2 Grease
    Static Load 3,057 lbf
    Dynamic Load 5,294 lbf
    Speed Limit 4,000 RPM
    Country of Origin China
    Interchange Numbers SUCSFL208-25XEH1S6, S2F100SS-1-9/16, SF2S-1-9/16
