UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm

SKU: UCFB203
  • Free shipping on most orders
  • Ships from Glendale, CA

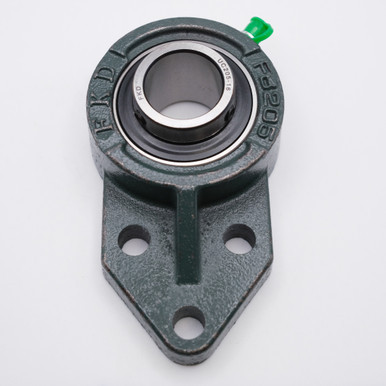

  • UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm Front View
  • UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm Back View

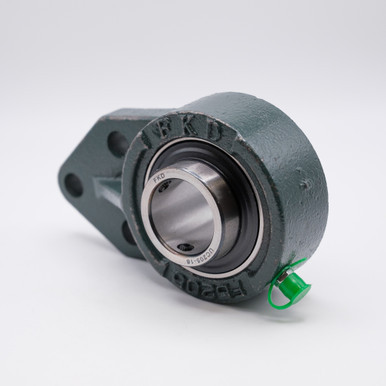

  • UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm Side View
  • UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm Side View
  • UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm Side View
  • UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm Side View
  • UCFB203 3-Bolt Bracket Flange w/Set Screw Locking Unit Shaft Size 17mm Side View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)17mm
    Overall Length60mm
    Overall Height110mm
    Base to center height42mm
    Bolt-hole spacing32mm

    Construction

    Bearing MaterialChrome Steel SAE-52100
    Housing MaterialCast Iron
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load1,495 lbs
    Dynamic Load2,882 lbs
    Speed Limit8,800 RPM

    Interchange numbers 3

    • UCFK-203
    • UCFH-203-D1
    • MFB-17
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    UCFB203 3-Bolt Flange Unit

    Key Features

    UCFB203 3-Bolt Flange Bearing Unit has a combination of a cast iron 3-bolt bracket flange unit and a chrome steel set screw locking insert bearing. This specific 3-Bolt Flange Bearing Unit has a shape of a chevron flange which has a special configuration on conveyors. The insert ball bearing has been made with a wide inner ring and has been equipped with two set screws, located on the extended inner ring, for the attachment of a shaft. Our Mounted Block Units are pre-lubricated with Grease, allowing them to be ready for immediate use upon arrival.

    Applications / Industries

    UCFB203 Mounted Blocks are used in a variety of applications such as Construction Equipment, Pumps, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, HVAC Systems, Feed Mills, Agricultural Equipment and other Industrial Equipment.
