    • SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore
  • SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore Top View
  • SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore Front View
  • SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore Top View SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore Front View

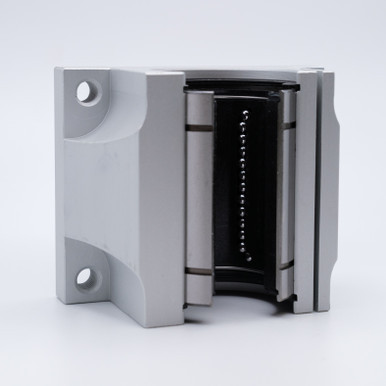

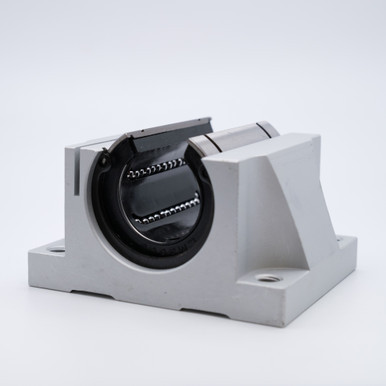

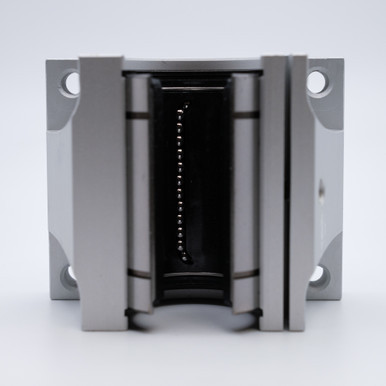

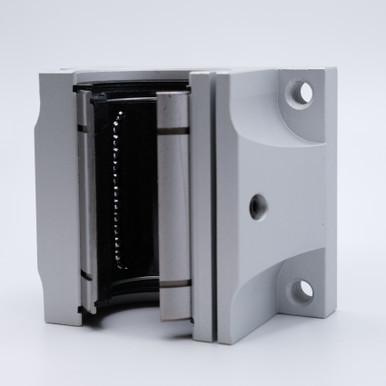

    SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore

    (You save )
    Write a Review
    SKU:
    SDM20UU
    Minimum Purchase:
    50 units
    Bore Size:
    20mm
    Base to Center:
    53/64" (20.99mm)
    Overall Width:
    2-43/64" (68mm)
    Overall Length:
    2-1/64" (51mm)
    Height:
    1-15/64" (31.4mm)
    Bolt Hole to Bolt Hole (Width):
    2-1/8" (54mm)
    Bolt Hole to Bolt Hole (Length):
    1-29/64" (37mm)
    Threads:
    M6
    Insert Bearing:
    LM20UUOP
    Static Load:
    264 lbs
    Dynamic Load:
    176 lbs
    Case Material:
    Aluminum
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Number:
    TBR20UU

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    SDM20UU Precision Linear Slide Motion Open Pillow Case Ball Bearing Both Sides Rubber Sealed
    The SDM20 is an open linear bearing with oil seal installed in a small and light aluminum case, making it easy to install and mount to. The SDM20UU slide unit has been optimized to be used with the SDM20 range of fully supported precision round rails and is manufactured of aluminum and provide high corrosion resistance.

    The universal Linear Ball Bearings is great for you to replace the damaged Linear Ball Bearings in your devices to improve the efficiency and save energy. Widely used in CNC Lathe machine, CNC Milling machine, Robotic motion systems, ADM cutting tools, 3D printing or even home made hobby or appliances, industrial, construction machinery and equipment. Smooth moving, low friction, high rigidity and long life. Economical, easy to maintain.

    Match #: TBR20UU

    Product Videos

    Custom Field

    Bore Size 20mm
    Base to Center 53/64" (20.99mm)
    Overall Width 2-43/64" (68mm)
    Overall Length 2-1/64" (51mm)
    Height 1-15/64" (31.4mm)
    Bolt Hole to Bolt Hole (Width) 2-1/8" (54mm)
    Bolt Hole to Bolt Hole (Length) 1-29/64" (37mm)
    Threads M6
    Insert Bearing LM20UUOP
    Static Load 264 lbs
    Dynamic Load 176 lbs
    Case Material Aluminum
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Number TBR20UU

    Product Reviews

    Write a Review

    Write a Review

    ×
    SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore Top View
    SDM20UU Open Pillow Case Motion Linear Bearing 20mm Bore
