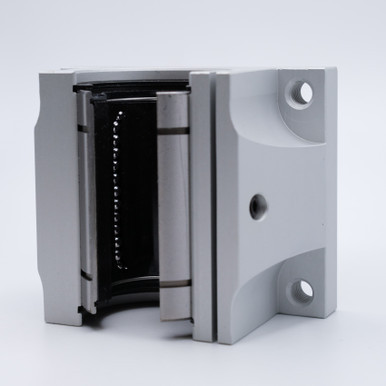

  • SDM16UU Pillow Case Motion Linear Bearing 16mm Top Right Angled View
  • SDM16UU Pillow Case Motion Linear Bearing 16mm Top Front View

    • SDM16UU Open Pillow Case Motion Linear Bearing 16mm Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SDM16UU
    Minimum Purchase:
    100 units
    Inner Diameter:
    16mm
    Base to Center:
    45/64" (17.86mm)
    Overall Width:
    2-7/16" (62mm)
    Overall Length:
    1-21/32" (42mm)
    Overall Height:
    1-1/16" (27mm)
    Bolt Hole to Bolt Hole (Width):
    1-31/32" (50mm)
    Bolt Hole to Bolt Hole (Length):
    1-3/16" (30mm)
    Thread Size:
    M5
    Insert Bearing:
    LM16UUOP
    Static Load:
    110 lbs
    Dynamic Load:
    88 lbs
    Housing Material:
    Aluminum
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    TBR16UU

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SDM16UU Precision Linear Slide Motion Open Pillow Case Ball Bearing Both Sides Rubber Sealed
    The SDM16 is an open linear bearing with oil seal installed in a small and light aluminum case, making it easy to install and mount to. The SDM16UU slide unit has been optimized to be used with the SDM16 range of fully supported precision round rails and is manufactured of aluminum and provide high corrosion resistance.

    The universal Linear Ball Bearings is great for you to replace the damaged Linear Ball Bearings in your devices to improve the efficiency and save energy. Widely used in CNC Lathe machine, CNC Milling machine, Robotic motion systems, ADM cutting tools, 3D printing or even home made hobby or appliances, industrial, construction machinery and equipment. Smooth moving, low friction, high rigidity and long life. Economical, easy to maintain.

    Match #: TBR16UU

    Product Videos

    Custom Field

    Inner Diameter 16mm
    Base to Center 45/64" (17.86mm)
    Overall Width 2-7/16" (62mm)
    Overall Length 1-21/32" (42mm)
    Overall Height 1-1/16" (27mm)
    Bolt Hole to Bolt Hole (Width) 1-31/32" (50mm)
    Bolt Hole to Bolt Hole (Length) 1-3/16" (30mm)
    Thread Size M5
    Insert Bearing LM16UUOP
    Static Load 110 lbs
    Dynamic Load 88 lbs
    Housing Material Aluminum
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers TBR16UU
