SME Series

SME20UU Open Case Linear Motion Bearing 20mm Bore

SKU: SME20UU
  • Free shipping on most orders
  • Ships from Glendale, CA
  • SME20UU Open Case Motion Linear Bearing 20x48x39 Angled View
  • SME20UU Open Case Motion Linear Bearing 20x48x39 Angled View
  • SME20UU Open Case Motion Linear Bearing 20x48x39 Angled View

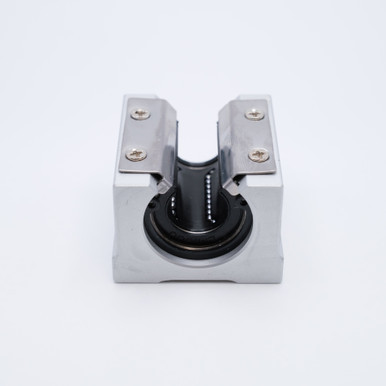

  • SME20UU Open Case Motion Linear Bearing 20x48x39 Front View
  • SME20UU Open Case Motion Linear Bearing 20x48x39 Bottom View
  • SME20UU Open Case Motion Linear Bearing 20x48x39 Side View
  • SME20UU Open Case Motion Linear Bearing 20x48x39 Bottom View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)20mm
    Overall Length1-31/32" (50mm)
    Overall Height1-17/32" (39mm)
    Base to center height29/32" (23mm)
    Overall Width1-57/64" (48mm)
    Bolt Hole to Bolt Hole (Width)1-3/8" (35mm)
    Bolt Hole to Bolt Hole (Length)1-3/8" (35mm)
    Thread SizeM6x12

    Construction

    Bearing MaterialChrome Steel
    Housing MaterialAluminum
    Insert BearingLME20UUOP
    LubricationLight Oil

    Performance

    Static Load309 lbs
    Dynamic Load194 lbs

    Interchange numbers 1

    • SBR20UU
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    SME20UU Bearing is an Open Case Pillow Block Slide Motion Sealed Ball Bushing Linear Bearing with Polyamide Retainer.

    Used for high accuracy systems and any application where smooth linear sliding motion is needed.

    This linear bearing is great for you to replace the damaged linear bearings in your devices to improve them efficiency and save energy. Widely used in home appliances, industrial, machinery, electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, robotics, automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry. Smooth moving, low friction, high rigidity and long life. Economical, easy to maintain, and replace.

    Match #: SBR20UU
