SDM Series

SDM30UU Open Pillow Case Motion Linear Bearing 30mm Bore

SKU: SDM30UU
  • Free shipping on most orders
  • Ships from Glendale, CA
  • SDM30UU Pillow Case Linear Bearing 30mm Front Angled View
  • SDM30UU Pillow Case Linear Bearing 30mm Oil Hole View

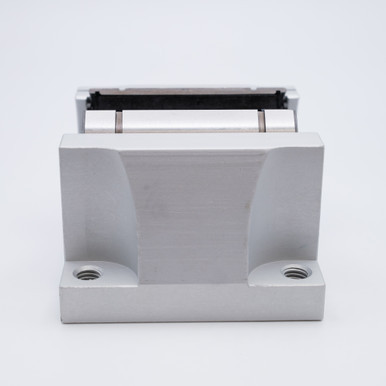

  • SDM30UU Pillow Case Linear Bearing 30mm Side View
  • SDM30UU Pillow Case Linear Bearing 30mm Top Left Angled View
  • SDM30UU Pillow Case Linear Bearing 30mm Top Right Angled View
  • SDM30UU Pillow Case Linear Bearing 30mm Top Front View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)30mm
    Overall Length2-61/64" (75mm)
    Overall Height1-57/64" (48mm)
    Base to center height1-5/16" (33.48mm)
    Overall Width3-37/64" (91mm)
    Bolt Hole to Bolt Hole (Width)2-61/64" (75mm)
    Bolt Hole to Bolt Hole (Length)2-23/64" (60mm)
    Thread SizeM8

    Construction

    Bearing MaterialChrome Steel
    Housing MaterialAluminum
    Insert BearingLM30UUOP
    LubricationChevron SRI-2 Grease

    Performance

    Static Load661 lbs
    Dynamic Load397 lbs

    Interchange numbers 1

    • TBR30UU
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    SDM30UU Precision Linear Slide Motion Open Pillow Case Ball Bearing Both Sides Rubber Sealed
    The SDM30 is an open linear bearing with oil seal installed in a small and light aluminum case, making it easy to install and mount to. The SDM30UU slide unit has been optimized to be used with the SDM30 range of fully supported precision round rails and is manufactured of aluminum and provide high corrosion resistance.

    The universal Linear Ball Bearings is great for you to replace the damaged Linear Ball Bearings in your devices to improve the efficiency and save energy. Widely used in CNC Lathe machine, CNC Milling machine, Robotic motion systems, ADM cutting tools, 3D printing or even home made hobby or appliances, industrial, construction machinery and equipment. Smooth moving, low friction, high rigidity and long life. Economical, easy to maintain.

    Match #: TBR30UU
