  • SME16UU Open Case Linear Motion Bearing 16mm Bore
  • SME16UU Open Case Linear Motion Bearing 16mm Bore

    (You save )
    (No reviews yet) Write a Review
    SKU:
    SME16UU
    Minimum Purchase:
    50 units
    Bore Size:
    16mm
    Base to Center:
    25/32" (20mm)
    Overall Width:
    1-49/64" (45mm)
    Overall Length:
    1-49/64" (45mm)
    Height:
    1-19/64" (33mm)
    Bolt Hole to Bolt Hole (Width):
    1-17/64" (32mm)
    Bolt Hole to Bolt Hole (Length):
    1-3/16" (30mm)
    Threads:
    M5x12
    Insert Bearing:
    LME16UUOP
    Static Load:
    201 lbs
    Dynamic Load:
    130 lbs
    Case Material:
    Aluminum
    Bearing Material:
    Chrome Steel
    Lubrication:
    Light Oil
    Interchange Numbers:
    SBR16UU

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

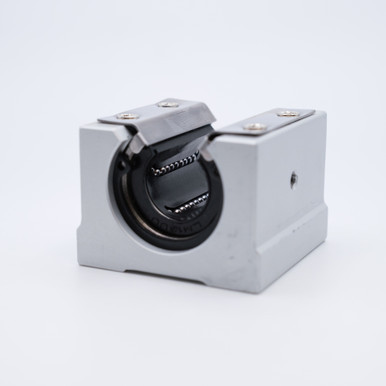

    SME16UU Bearing is an Open Case Pillow Block Slide Motion Sealed Ball Bushing Linear Bearing with Polyamide Retainer.

    Used for high accuracy systems and any application where smooth linear sliding motion is needed.

    This linear bearing is great for you to replace the damaged linear bearings in your devices to improve them efficiency and save energy. Widely used in home appliances, industrial, machinery, electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, robotics, automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry. Smooth moving, low friction, high rigidity and long life. Economical, easy to maintain, and replace.

    Match #: SBR16UU

    Product Videos

    Custom Field

    Bore Size 16mm
    Base to Center 25/32" (20mm)
    Overall Width 1-49/64" (45mm)
    Overall Length 1-49/64" (45mm)
    Height 1-19/64" (33mm)
    Bolt Hole to Bolt Hole (Width) 1-17/64" (32mm)
    Bolt Hole to Bolt Hole (Length) 1-3/16" (30mm)
    Threads M5x12
    Insert Bearing LME16UUOP
    Static Load 201 lbs
    Dynamic Load 130 lbs
    Case Material Aluminum
    Bearing Material Chrome Steel
    Lubrication Light Oil
    Interchange Numbers SBR16UU
