SA16TK Rod-End Bearing Left Hand 16mm Bore POSA16L

SKU: SA16TK

Free shipping on most orders
Ships from Glendale, CA

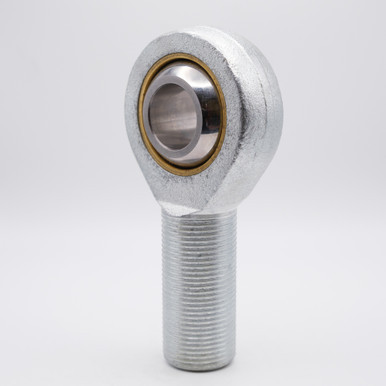

SA16TK Rod-End Bearing 16mm Bore Right Angled View

SA16TK Rod-End Bearing 16mm Bore Left Angled View

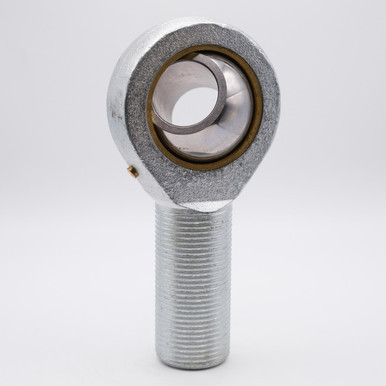

SA16TK Rod-End Bearing 16mm Bore Angled Bore View

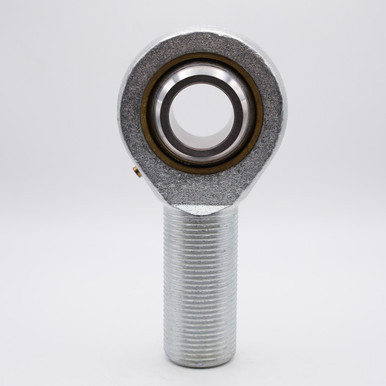

SA16TK Rod-End Bearing 16mm Bore Front View

SA16TK Rod-End Bearing 16mm Bore Flat View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	16mm
Outer Diameter	40mm
Overall Height	86mm
Base to center height	66mm
Thread Size	M16x2
Thread Direction	Left Hand

Construction

Housing Material	Zinc Chromate Plated
Ball Material	Chrome Steel SAE-52100
Lubrication	Light Oil
Country of Origin	China

Performance

Static Load	5,710 lbs
Dynamic Load	4,721 lbs

Interchange numbers 2

POSA16L
SA16TK

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

SA16TK Male Rod-End Bearing

Key Features

SA16TK Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This particular SA16TK bearings consists of a chrome steel spherical swivel with a cylindrical bore pressed into a zinc chromate plated housing with a threaded shank.

Applications / Industries

SA16TK Rod-End Bearings are used in a range of applications from Agricultural Machinery to Packaging Equipment, Agricultural Machinery, Textile Manufacturing Equipment, Machine Tools, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
