Rod End Bearings

PHS8L Rod-End Bearing Left Hand 8mm Bore CG-M8Z

SKU: PHS08L
  • Free shipping on most orders
  • Ships from Glendale, CA

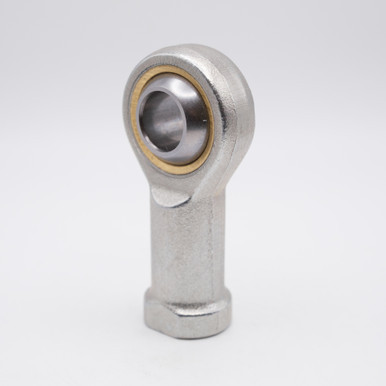

  • PHS8L Rod-End Bearing Left Hand 8mm Bore Right Angled View
  • PHS8L Rod-End Bearing Left Hand 8mm Bore Left Angled View

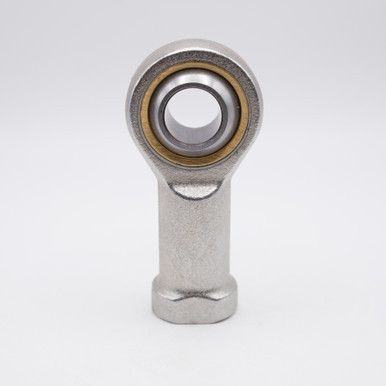

  • PHS8L Rod-End Bearing Left Hand 8mm Bore Front View
  • PHS8L Rod-End Bearing Left Hand 8mm Bore Angled Bore View
  • PHS8L Rod-End Bearing Left Hand 8mm Bore Flat Right Angled View
  • PHS8L Rod-End Bearing Left Hand 8mm Bore Flat Left Angled View
  • PHS8L Rod-End Bearing Left Hand 8mm Bore Bottom View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)8mm
    Outer Diameter22mm
    Overall Height47mm
    Base to center height36mm
    Thread SizeM8x1.5
    Thread DirectionRight Hand

    Construction

    Housing MaterialZinc Plated with Brass Cage
    Ball MaterialChrome Steel SAE-52100
    LubricationLight Oil
    Country of OriginChina

    Performance

    Static Load2,293 lbs
    Dynamic Load1,576 lbs

    Interchange numbers 6

    • GIKR08-PBL
    • SIKOC08ML
    • CG-M08
    • MG-M08
    • AG-M08
    • PHSA08L
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    PHS8L is a Female Rod-End Bearing with an 8mm Bore and a Left Hand Thread. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This bearing consists of a chrome steel ball inserted in a zinc plated female housing with a brass cage. This bearing has been pre-lubricated with light oil, ensuring it is ready for immediate use upon delivery.

    Sizes: 8mm Bore x 16mm Thread Length x M8 Thread Size

    Applications: Female Rod-End Bearings are used in a variety of applications ranging from Robotic Arms & Joints, Packaging Machines, Conveyor System Components, Printing Presses, Textile Equipment, Steering Linkages, Suspension Systems, Material Handling Equipment, Exercise Machines, Construction Equipment, among others.
