Rod End Bearings

CHS22ECL Rod-End Bearing Left Hand 22mm Bore

SKU: CHS22ECL
  • Free shipping on most orders
  • Ships from Glendale, CA
  • CHS22ECL Rod-End Bearing Left Hand 22mm Bore Right Angled View

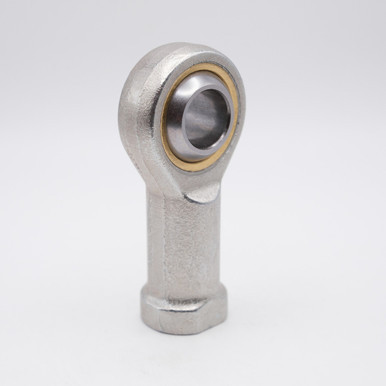

  • CHS22ECL Rod-End Bearing Left Hand 22mm Bore Left Angled View
  • CHS22ECL Rod-End Bearing Left Hand 22mm Bore Front View
  • CHS22ECL Rod-End Bearing Left Hand 22mm Bore Angled Bore View
  • CHS22ECL Rod-End Bearing Left Hand 22mm Bore Flat Right Angled View

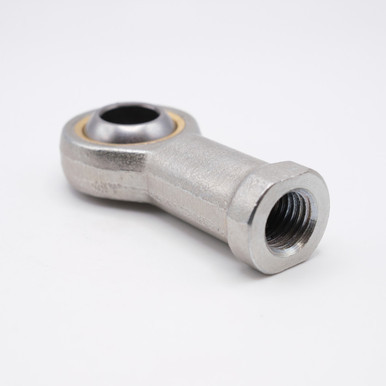

  • CHS22ECL Rod-End Bearing Left Hand 22mm Bore Flat Left Angled View
  • CHS22ECL Rod-End Bearing Left Hand 22mm Bore Bottom View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)22mm
    Outer Diameter54mm
    Overall Height111mm
    Base to center height84mm
    Thread SizeM22x1.5
    Thread DirectionLeft Hand

    Construction

    Housing MaterialZinc Plated with PTFE Cage
    Ball MaterialChrome Steel SAE-52100
    LubricationLight Oil
    Country of OriginChina

    Performance

    Static Load12,814 lbs
    Dynamic Load9,487 lbs

    Interchange numbers 4

    • PHS22ECL
    • GIKFR22PWL
    • SFCV22L
    • SIKB22FL
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    CHS22ECL is a PTFE Lined Female Rod-End Ball Bearing with a 22mm bore and a left handed thread. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. CHS22ECL bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with PTFE Lining, which allows the bearing to function without the use of lubricant.

    Sizes: 22mm Bore x 37mm Thread Length x M22x1.5 Thread Size

    Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Trucks, Automation Control Components, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
