Rod End Bearings

POSB6 Rod-End Bearing Right Hand Rod 1-1/4 x Bore 3/8-1657063437

SKU: MM06
  • Free shipping on most orders
  • Ships from Glendale, CA

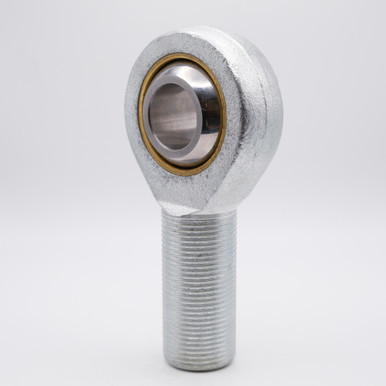

  • POSB6 Rod-End Bearing Right Hand Rod 1-1/4 x Bore 3/8 Side View
  • POSB6 Rod-End Bearing Right Hand Rod 1-1/4 x Bore 3/8 Side View
  • POSB6 Rod-End Bearing Right Hand Rod 1-1/4 x Bore 3/8 Side View
  • POSB6 Rod-End Bearing Right Hand Rod 1-1/4 x Bore 3/8 Front View

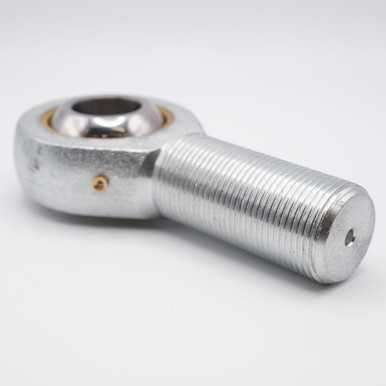

  • POSB6 Rod-End Bearing Right Hand Rod 1-1/4 x Bore 3/8 Flat View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)3/8"
    Outer Diameter1"
    Overall Height2-7/16"
    Base to center height1-15/16"
    Thread Size3/8-24UNF
    Thread DirectionRight Hand

    Construction

    Housing MaterialNickel Plated Housing
    Ball MaterialChrome Steel SAE-52100
    LubricationLight Oil
    Country of OriginChina

    Performance

    Static Load4,856 lbs
    Dynamic Load2,075 lbs

    Interchange numbers 8

    • HM6
    • HM6G
    • TRE-6
    • TRE6N
    • TRE-6N
    • MM-6
    • MM-6Z
    • POSB6Z
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    POSB6 Rod-End Bearing

    Key Features

    POSB6 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB6 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.

    Applications / Industries

    POSB6 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
