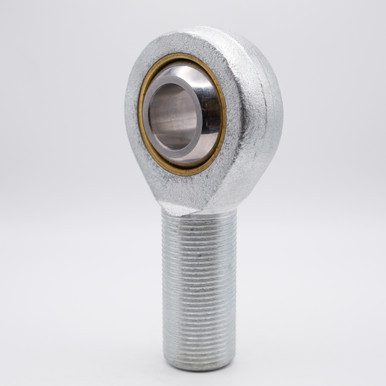

• POSB6 Rod-End Bearing Right Hand 3/8" Bore Right Angled View

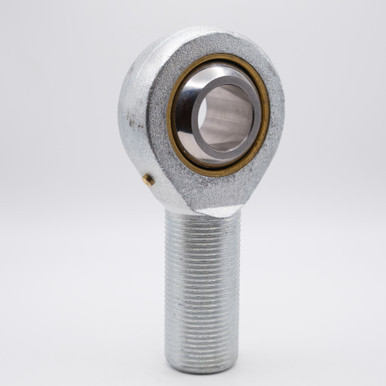

  • POSB6 Rod-End Bearing Right Hand 3/8" Bore Left Angled View

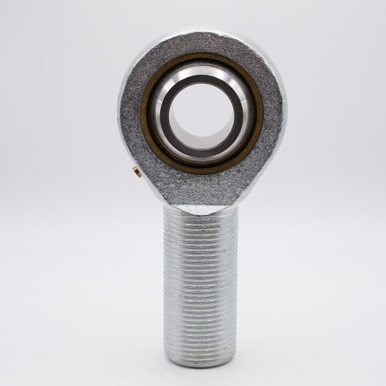

  • POSB6 Rod-End Bearing Right Hand 3/8" Bore Front View
  • POSB6 Rod-End Bearing Right Hand 3/8" Bore Angled Bore View

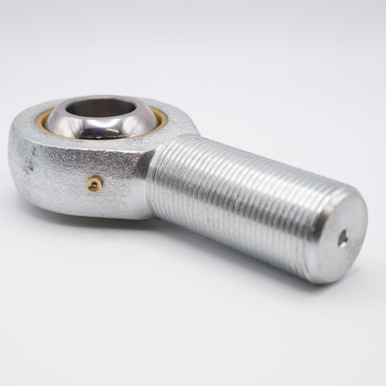

  • POSB6 Rod-End Bearing Right Hand 3/8" Bore Flat Angled View

    • POSB6 Pilloball Male Rod End Bearing Right Hand Thread 3/8" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    POSB6
    Minimum Purchase:
    100 units
    Bore Size:
    3/8" (9.525mm)
    Base to Center:
    1-15/16" (49.23mm)
    Thread:
    -24UNF ( .3750")
    Overall Height:
    2-7/16" (61.93mm)
    Outer Diameter:
    1" (25.40mm)
    Static Load:
    4,856 lbs
    Dynamic Load:
    2,075 lbs
    Ball Material:
    Chrome Steel
    Housing Material:
    Nickel Plated
    Interchange Numbers:
    HM6, HM6G, TRE-6, TRE6N, TRE-6N, MM-6, MM-6Z, POSB6Z
    Thread Direction:
    Right Hand

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    POSB6 Bearing is a Rod End PilloBall Insert Bearing, Right Handed Thread and Zinc Plated

    Match #: HM6, HM6G, TRE-6, TRE6N, TRE-6N, MM-6, MM-6Z, POSB6Z

    Product Videos

    Custom Field

    Bore Size 3/8" (9.525mm)
    Base to Center 1-15/16" (49.23mm)
    Thread -24UNF ( .3750")
    Overall Height 2-7/16" (61.93mm)
    Outer Diameter 1" (25.40mm)
    Static Load 4,856 lbs
    Dynamic Load 2,075 lbs
    Ball Material Chrome Steel
    Housing Material Nickel Plated
    Interchange Numbers HM6, HM6G, TRE-6, TRE6N, TRE-6N, MM-6, MM-6Z, POSB6Z
    Thread Direction Right Hand
