POSA12 Male Rod-End Bearing Right Hand Rod 12mm Bore

SKU: POSA12

Free shipping on most orders
Ships from Glendale, CA

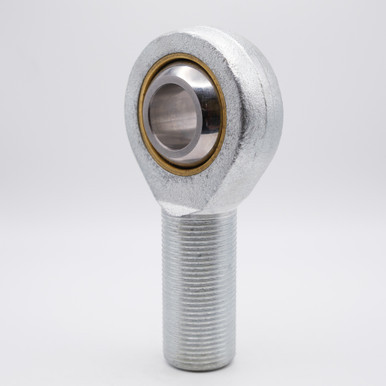

POSA12 Male Rod-End Bearing Right Hand Rod 12mm Bore Right Angled View

POSA12 Male Rod-End Bearing Right Hand Rod 12mm Bore Left Angled View

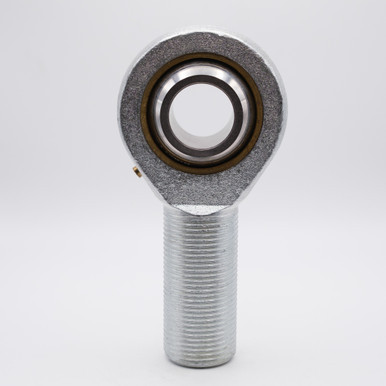

POSA12 Male Rod-End Bearing Right Hand Rod 12mm Bore Front View

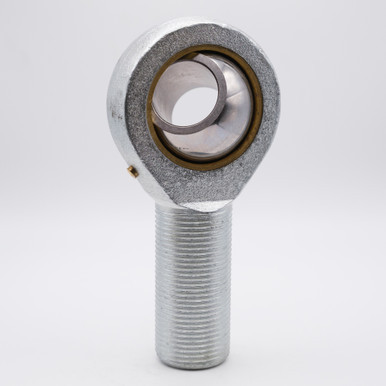

POSA12 Male Rod-End Bearing Right Hand Rod 12mm Bore Angled Bore

POSA12 Male Rod-End Bearing Right Hand Rod Side View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	12mm
Outer Diameter	30mm
Overall Height	69mm
Base to center height	54mm
Thread Size	12x1.75
Thread Direction	Right Hand

Construction

Housing Material	Nickel Plated
Ball Material	Chrome Steel SAE-52100
Lubrication	Light Oil
Country of Origin	China

Performance

Static Load	3,799 lbs
Dynamic Load	2,945 lbs

Interchange numbers 9

HM12
HM12G
TRE12
TRE12N
TRE-12N
MM-12
MM12Z
POSB12Z
POSA12

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

POSA12 Rod-End Bearing

Key Features

POSA12 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSA12 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.

Applications / Industries

POSA12 Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
