SA8TK Rod-End Bearing Right Hand Rod 8mm

SKU: SA8TK

Free shipping on most orders
Ships from Glendale, CA

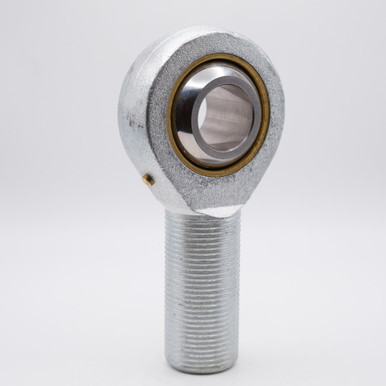

SA8TK Rod-End Bearing Right Hand Rod 8mm Side View

SA8TK Rod-End Bearing Right Hand Rod 8mm Front View

SA8TK Rod-End Bearing Right Hand Rod 8mm Flat View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	8mm
Outer Diameter	24mm
Overall Height	54mm
Base to center height	42mm
Thread Size	M8x1.25
Thread Direction	Right Hand

Construction

Housing Material	Nickel Plated
Ball Material	Chrome Steel SAE-52100
Lubrication	Light Oil
Country of Origin	China

Performance

Static Load	2,900 lbs
Dynamic Load	2,608 lbs

Interchange numbers 9

HML8
HML8G
TREL-8
TREL8N
TREL-8N
MB-8
MB-8Z
POSB8LZ
SA8TK

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

SA16TK Rod-End Bearing

Key Features

SA16TK Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. SA16TK bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.

Applications / Industries

SA16TK Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, Go-Karts, Radio Control Helicopters, and Formula Cars, among others.
