| Bore (inner diameter) | 12mm |
|---|---|
| Outer Diameter | 21mm |
| Length | 30mm |
| Closure Type | Rubber Sealed |
|---|---|
| Material | Chrome Steel SAE-52100 |
| Lubrication | Light Oil |
| Country of Origin | China |
| Static Load | 1,191 lbs |
|---|---|
| Dynamic Load | 816 lbs |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

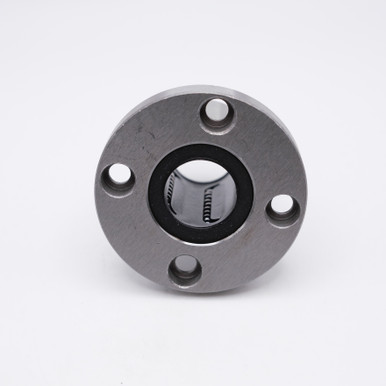

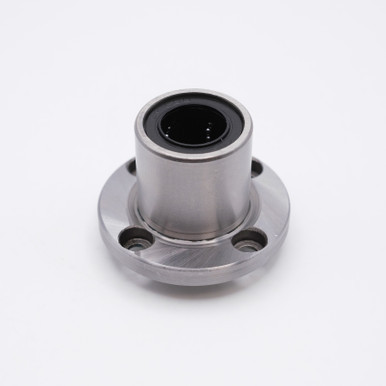

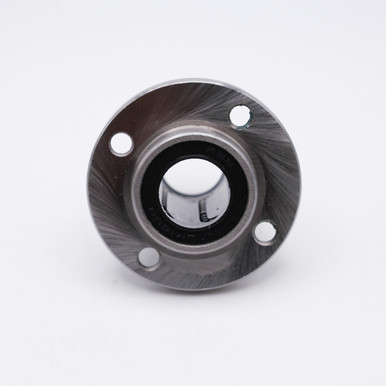

This LMF12UU-E Precision Linear Motion Flanged Ball Bushing Bearing comes pre-lubricated with Light Oil to allow it to be ready to use upon arrival and features a Round Euro Flanged Housing which provides smooth linear motion via ball bearings. LMF12UU-E is manufactured with a Pilot End which prevents the linear bushing from protruding towards the opposite side of the linear bushings mounting side while also retaining sufficient space on the opposite side. Linear bushings consist of an outer cylinder and ball retainer that houses the bushing components. These are commonly used in applications that require smooth, precise motion.
LMF12UU-E Linear bearings can be used in a variety of different industries such as Medical Equipment, Packaging Machinery, Food Processing Equipment, Lab Equipment, CNC Machinery, Robotics, Fitness Equipment, Furniture, Automation Machinery, among others.
