| Bore (inner diameter) | 10mm |
|---|---|
| Outer Diameter | 19mm |
| Length | 29mm |
| Closure Type | Rubber Sealed |
|---|---|
| Material | Chrome Steel SAE-52100 |
| Lubrication | Light Oil |
| Country of Origin | China |
| Static Load | 124 lbs |
|---|---|
| Dynamic Load | 84 lbs |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

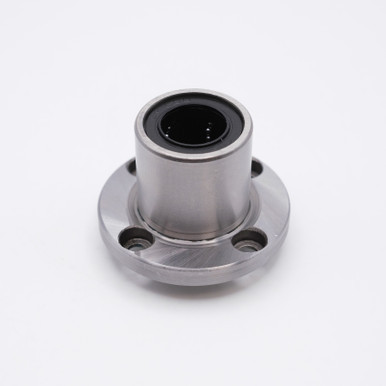

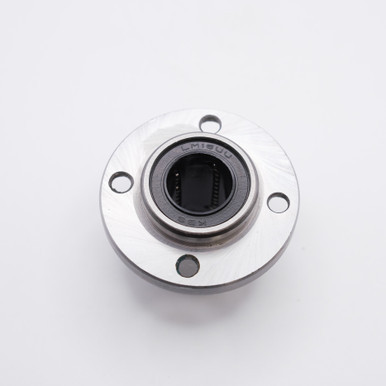

This LMF10UU-E Precision Linear Motion Flanged Ball Bushing Bearing comes pre-lubricated with Light Oil to allow it to be ready to use upon arrival and features a Round Euro Flanged Housing which provides smooth linear motion via ball bearings. LMF10UU-E is manufactured with a Pilot End which prevents the linear bushing from protruding towards the opposite side of the linear bushings mounting side while also retaining sufficient space on the opposite side. Linear bushings consist of an outer cylinder and ball retainer that houses the bushing components. These are commonly used in applications that require smooth, precise motion. This bearing features Rubber Seals that are found on both sides of the bearing which prevent any debris from entering the bearing while also keeping lubricant oil inside.
LMF10UU-E Linear bearings can be used in a variety of different applications including Lab Equipment, Packaging Equipment, CNC Machinery, Robotic Equipment, Conveyor Systems, Packaging Equipment, Scanning Systems, Optical Systems, Automation Machinery, among others.
