LMF Series

LMF8UU-E Linear Motion Euro Flanged Ball Bushing 8x15x24mm

SKU: LMF8UU-E
  • Free shipping on most orders
  • Ships from Glendale, CA
  • LMF8UU-E Linear Motion Euro Flanged Ball Bushing 8x15x24mm Top View

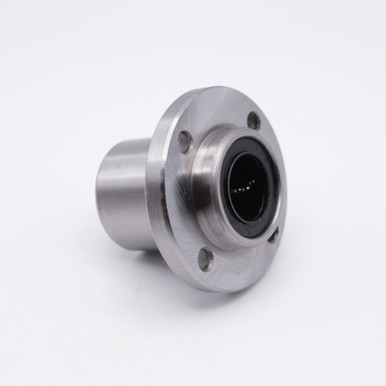

  • LMF8UU-E Linear Motion Euro Flanged Ball Bushing 8x15x24mm Back Left Angled View

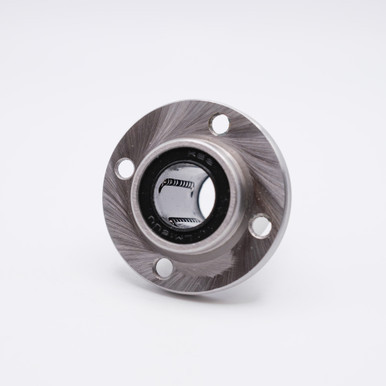

  • LMF8UU-E Linear Motion Euro Flanged Ball Bushing 8x15x24mm Back Right Angled View
  • LMF8UU-E Linear Motion Euro Flanged Ball Bushing 8x15x24mm Back View

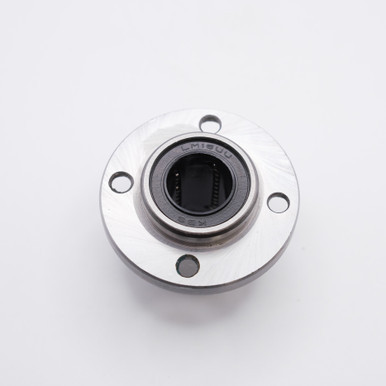

  • LMF8UU-E Linear Motion Euro Flanged Ball Bushing 8x15x24mm Bottom View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)8mm
    Outer Diameter15mm
    Length24mm

    Construction

    Closure TypeRubber Sealed
    MaterialChrome Steel SAE-52100
    LubricationLight Oil
    Country of OriginChina

    Performance

    Static Load882 lbs
    Dynamic Load573 lbs

    Interchange numbers 4

    • LMF8GUU-E
    • LMF8UU-E
    • SMF8GUU-E
    • FTB8UU-E
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    LMF8UU-E Linear Flanged Ball Bushing

    Key Features

    This LMF8UU-E Precision Linear Motion Flanged Ball Bushing Bearing comes pre-lubricated with light oil to allow it to be ready to use upon arrival and features a Round Euro Flanged Housing which provides smooth linear motion via ball bearings. LMF8UU-E is manufactured with a Pilot End which prevents the linear bushing from protruding towards the opposite side of the linear bushings mounting side while also retaining sufficient space on the opposite side. Linear bushings consist of an outer cylinder and ball retainer that houses the bushing components. These are commonly used in applications that require smooth, precise motion and feature rubber seals on both sides, which prevent debris from entering the bearing while keeping lubricant inside.

    Applications / Industries

    LMF8UU-E Linear bearings can be used in a variety of different industries such as Medical Equipment, Packaging Equipment, Food Processing Systems, Lab Equipment, CNC Machinery, Robotics, Factory Automation, Gym Equipment, among others.
