  • HC205 Insert Ball Bearing 25x52x44.4
  • HC205 Insert Ball Bearing 25x52x44.4
  • HC205 Insert Ball Bearing 25x52x44.4
  • HC205 Insert Ball Bearing 25x52x44.4
  • HC205 Insert Ball Bearing 25x52x44.4
  • HC205 Insert Ball Bearing 25x52x44.4 HC205 Insert Ball Bearing 25x52x44.4 HC205 Insert Ball Bearing 25x52x44.4 HC205 Insert Ball Bearing 25x52x44.4

    HC205 Insert Ball Bearing 25x52x44.4

    (You save )
    (No reviews yet) Write a Review
    SKU:
    HC205
    Minimum Purchase:
    100 units
    Inner Diameter:
    25mm
    Outer Diameter:
    52mm
    Inner Race Width:
    17mm
    Outer Race Width:
    44.4mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,750 lbs
    Dynamic Load:
    3,140 lbs
    Speed Limit:
    6,250 RPM
    Interchange Numbers:
    NA205, HC205, UG205

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

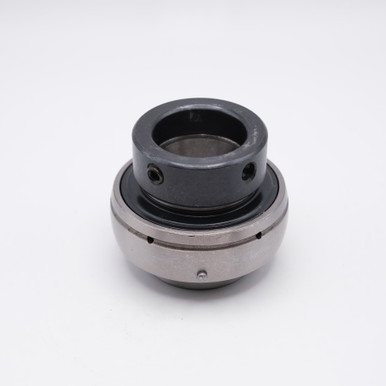

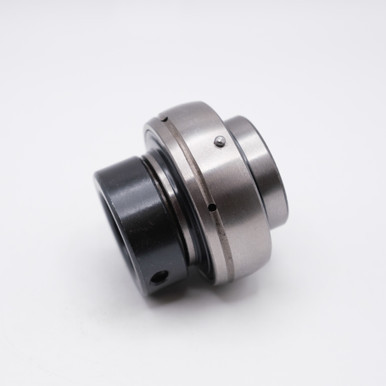

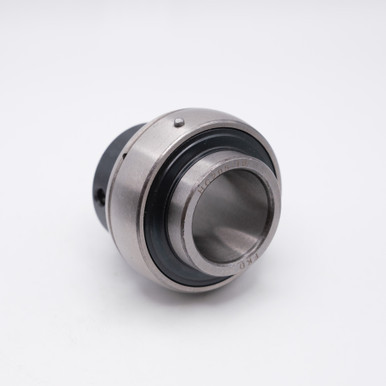

    HC200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing With Locking Collar Set Screw, Sealed and Pre-Lubricated with Grease

    HC200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.

    Match#: NA205, HC205, UG205

    Product Videos

    Custom Field

    Inner Diameter 25mm
    Outer Diameter 52mm
    Inner Race Width 17mm
    Outer Race Width 44.4mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,750 lbs
    Dynamic Load 3,140 lbs
    Speed Limit 6,250 RPM
    Interchange Numbers NA205, HC205, UG205
