  • HC205-15 Insert Ball Bearing 15/16x52x44.4
  • HC205-15 Insert Ball Bearing 15/16x52x44.4
  • HC205-15 Insert Ball Bearing 15/16x52x44.4
  • HC205-15 Insert Ball Bearing 15/16x52x44.4
  • HC205-15 Insert Ball Bearing 15/16x52x44.4
  • HC205-15 Insert Ball Bearing 15/16x52x44.4 HC205-15 Insert Ball Bearing 15/16x52x44.4 HC205-15 Insert Ball Bearing 15/16x52x44.4 HC205-15 Insert Ball Bearing 15/16x52x44.4

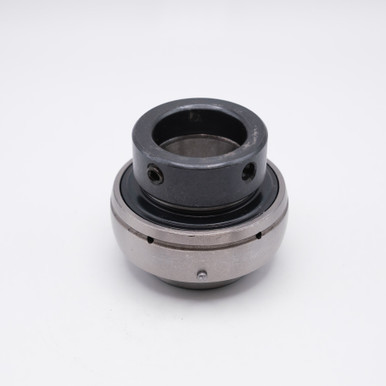

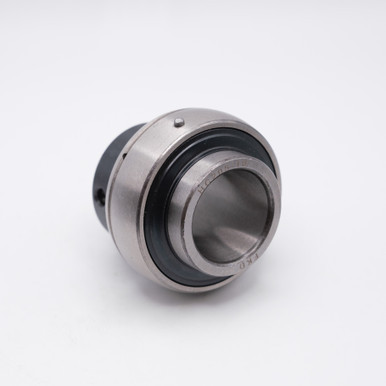

    HC205-15 Insert Ball Bearing 15/16x52x44.4

    (You save )
    (No reviews yet) Write a Review
    SKU:
    HC205-15
    Minimum Purchase:
    100 units
    Inner Diameter:
    15/16"
    Outer Diameter:
    52mm
    Inner Race Width:
    17mm
    Outer Race Width:
    44.4mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,750 lbs
    Dynamic Load:
    3,140 lbs
    Speed Limit:
    6,250 RPM
    Interchange Numbers:
    NA205-15, HC205-15, UG205-15

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    HC200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing With Locking Collar Set Screw, Sealed and Pre-Lubricated with Grease

    HC200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.

    Match#: NA205-15, HC205-15, UG205-15

    Product Videos

    Custom Field

    Inner Diameter 15/16"
    Outer Diameter 52mm
    Inner Race Width 17mm
    Outer Race Width 44.4mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,750 lbs
    Dynamic Load 3,140 lbs
    Speed Limit 6,250 RPM
    Interchange Numbers NA205-15, HC205-15, UG205-15
