• SB208 Crowned Outer Insert Bearing 40x80x18mm Flat View

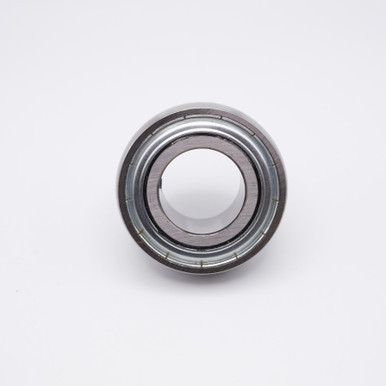

  • SB208 Crowned Outer Insert Bearing 40x80x18mm Back View
  • SB208 Crowned Outer Insert Bearing 40x80x18mm Flat View

    • SB208 Insert Ball Bearing 40x80x34

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SB208
    Minimum Purchase:
    100 units
    Inner Diameter:
    40mm
    Outer Diameter:
    80mm
    Inner Race Width:
    18mm
    Outer Race Width:
    34mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    4,450 lbs
    Dynamic Load:
    7,280 lbs
    Speed Limit:
    4,000 RPM
    Interchange Numbers:
    FHS208, B8, SB208, SB208, AS208

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SB200 Bearing Series Set Screw Insert Ball Bearing Sealed and Pre-Lubricated with Grease

    SB200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity.

    Match#: FHS208, B8, SB208, SB208, AS208

    Product Videos

    Custom Field

    Inner Diameter 40mm
    Outer Diameter 80mm
    Inner Race Width 18mm
    Outer Race Width 34mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 4,450 lbs
    Dynamic Load 7,280 lbs
    Speed Limit 4,000 RPM
    Interchange Numbers FHS208, B8, SB208, SB208, AS208
