  • CSA204 Insert Ball Bearing 20x47x31
  • CSA204 Insert Ball Bearing 20x47x31 Side View
  • CSA204 Insert Ball Bearing 20x47x31 Back View

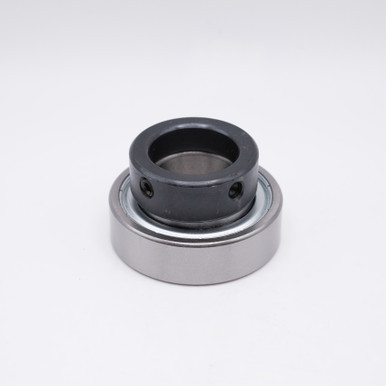

  • CSA204 Insert Ball Bearing 20x47x31 Flat View
  • CSA204 Insert Ball Bearing 20x47x31 Front View
  • CSA204 Insert Ball Bearing 20x47x31 Separated Front View
  • CSA204 Insert Ball Bearing 20x47x31 Separated Side View
  • CSA204 Insert Ball Bearing 20x47x31 Side View CSA204 Insert Ball Bearing 20x47x31 Back View CSA204 Insert Ball Bearing 20x47x31 Flat View CSA204 Insert Ball Bearing 20x47x31 Front View CSA204 Insert Ball Bearing 20x47x31 Separated Front View CSA204 Insert Ball Bearing 20x47x31 Separated Side View

    CSA204 Insert Ball Bearing 20x47x31

    (You save )
    (No reviews yet) Write a Review
    SKU:
    CSA204
    Minimum Purchase:
    100 units
    Inner Diameter:
    20mm
    Outer Diameter:
    47mm
    Inner Race Width:
    14mm
    Outer Race Width:
    31mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbs
    Dynamic Load:
    2,900 lbs
    Speed Limit:
    7,450 RPM
    Interchange Numbers:
    FHR204, KHR204, AELS204

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease

    CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.

    CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

    Match #: FHR204, KHR204, AELS204

    Product Videos

    Custom Field

    Inner Diameter 20mm
    Outer Diameter 47mm
    Inner Race Width 14mm
    Outer Race Width 31mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbs
    Dynamic Load 2,900 lbs
    Speed Limit 7,450 RPM
    Interchange Numbers FHR204, KHR204, AELS204

    Product Reviews

    Write a Review

    Write a Review

    ×
    CSA204 Insert Ball Bearing 20x47x31 Side View
    CSA204 Insert Ball Bearing 20x47x31

    ×

    You May Also Like...

    • S1602-ZZ Stainless Steel Ball Bearing 1/4x11/16x1/4 Front View S1602-ZZ Stainless Steel Ball Bearing 1/4x11/16x1/4 Front View
      Quick view Details

      sku: S1602-ZZ

      S1602-ZZ Stainless Steel Ball Bearing 1/4x11/16x1/4

      View Details
    • F606-ZZ Flanged Miniature Ball Bearing 6x17x6 F606-ZZ Flanged Miniature Ball Bearing 6x17x6 Front View F606-ZZ Flanged Miniature Ball Bearing 6x17x6 F606-ZZ Flanged Miniature Ball Bearing 6x17x6 Front View
      Quick view Details

      sku: F606-ZZ

      F606-ZZ Flanged Miniature Ball Bearing 6x17x6

      View Details
    • LM67048 Tapered Roller Bearing 1-1/4x5/8 3/4xx21/32 Front View LM67048 Tapered Roller Bearing 1-1/4x5/8 3/4xx21/32 Rear View LM67048 Tapered Roller Bearing 1-1/4x5/8 3/4xx21/32 Front View LM67048 Tapered Roller Bearing 1-1/4x5/8 3/4xx21/32 Rear View
      Quick view Details

      sku: LM67048

      LM67048 Tapered Roller Bearing 1-1/4x5/8

      View Details
    • MF105-2RS Miniature Flanged Ball Bearing 5x10x4 Side View MF105-2RS Miniature Flanged Ball Bearing 5x10x4 Side View
      Quick view Details

      sku: MF105-2RS

      MF105-2RS Miniature Flanged Ball Bearing 5x10x4

      View Details
    • MF95-2RS Miniature Flanged Ball Bearing 5x9x3 Side View MF95-2RS Miniature Flanged Ball Bearing 5x9x3 Side View
      Quick view Details

      sku: MF95-2RS

      MF95-2RS Miniature Flanged Ball Bearing 5x9x3

      View Details
    • 6313C3 Bearing 6313C3 Bearing
      Quick view Details

      sku: 6313C3

      6313C3 Ball Bearing 65x140x33

      View Details
    • SMF115-ZZ Stainless Steel Miniature Flanged Ball Bearing 5x11x4 Front View SMF115-ZZ Stainless Steel Miniature Flanged Ball Bearing 5x11x4 Front View
      Quick view Details

      sku: SMF115-ZZ

      SMF115-ZZ Stainless Steel Miniature Flanged Ball Bearing 5x11x4

      View Details
    • MF104-ZZ Miniature Flanged Ball Bearing 4x10x4 Front View MF104-ZZ Miniature Flanged Ball Bearing 4x10x4 Front View
      Quick view Details

      sku: MF104-ZZ

      MF104-ZZ Miniature Flanged Ball Bearing 4x10x4

      View Details

    Recommended

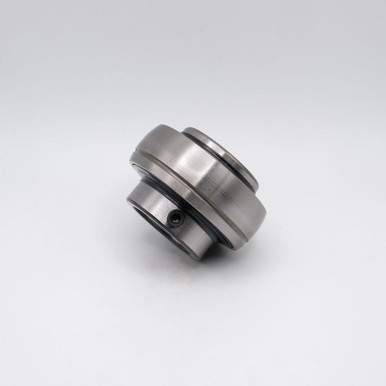

    • UC204 Insert Ball Bearing 20x47x31 Side View UC204 Insert Ball Bearing 20x47x31 Front View UC204 Insert Ball Bearing 20x47x31 Side View UC204 Insert Ball Bearing 20x47x31 Front View
