UC Series

UC204 Insert Ball Bearing 20x47x31

SKU: UC204
  • Free shipping on most orders
  • Ships from Glendale, CA
  • UC204 Insert Ball Bearing 20x47x17mm Front View
  • UC204 Insert Ball Bearing 20x47x17mm Front Left Side View

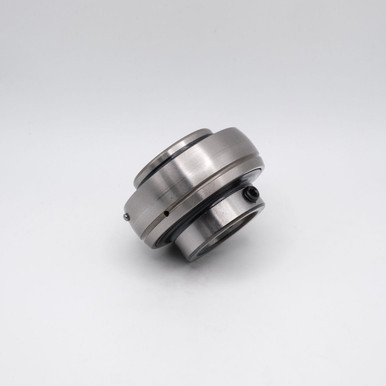

  • UC204 Insert Ball Bearing 20x47x17mm Front Right Side View
  • UC204 Insert Ball Bearing 20x47x17mm Back Left Side View

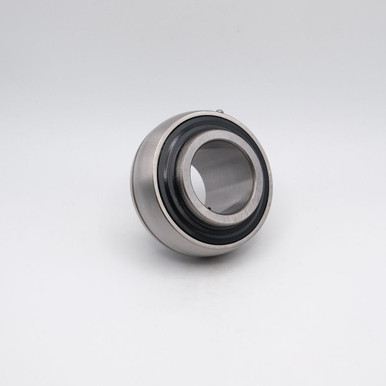

  • UC204 Insert Ball Bearing 20x47x17mm Back Right Side View
  • UC204 Insert Ball Bearing 20x47x17mm Back View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)20mm
    Outer Diameter47mm
    Inner Race Width31mm
    Outer Race Width17mm

    Construction

    MaterialChrome Steel SAE-52100
    LubricationChevron SRI-2 Grease

    Performance

    Static Load1,495 lbs
    Dynamic Load2,882 lbs
    Speed Limit7,450 RPM

    Interchange numbers 1

    • UC204-20MM
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    Insert Set Screw Ball Bearing With Lubricating Groove Access, Sealed & Pre-Lubricated, Spherical Outer to Insert in Housing

    UC200 Insert Bearing Series has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring. Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative.

    The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.

    Match #: UC204-20MM
