Rod End Bearings

COS22ECL PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Left Hand

SKU: COS22ECL
  • Free shipping on most orders
  • Ships from Glendale, CA
  • COS22ECL PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Right Angled View

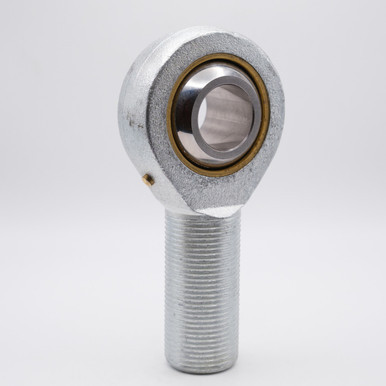

  • COS22ECL PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Left Angled View
  • COS22ECL PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Front View
  • COS22ECL PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Angled Bore View
  • COS22ECL PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Flat View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)22mm
    Outer Diameter48mm
    Overall Height111mm
    Base to center height84mm
    Thread SizeM22x1.5
    Thread DirectionLeft Hand

    Construction

    Housing MaterialZinc Plated with PTFE Liner
    Ball MaterialChrome Steel SAE-52100
    LubricationNone
    Country of OriginChina

    Performance

    Static Load12,814 lbs
    Dynamic Load9,487 lbs

    Interchange numbers 1

    • COS22ECL
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    COS22ECL PTFE Lined Rod-End Ball Joint Bearing with 22mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.

    Sizes: 22mm Bore x 48mm Rod x M22x1.5 Thread Size

    Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
