• COS22EC PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Right Angled View

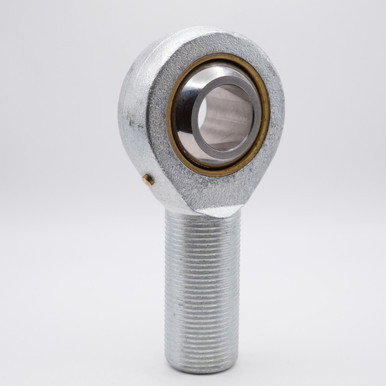

  • COS22EC PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Left Angled View
  • COS22EC PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Front View
  • COS22EC PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Angled Bore View
  • COS22EC PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Flat View

    • COS22EC PTFE Lined Rod-End Ball Joint Bearing 22mm Bore Right Hand

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    COS22EC
    Minimum Purchase:
    100 units
    Inner Diameter:
    22mm
    Outer Diameter:
    48mm
    Overall Height:
    111mm
    Base to Center:
    84mm
    Thread Size:
    M22x1.5
    Thread Direction:
    Right Hand
    Ball Material:
    Chrome Steel SAE-52100
    Housing Material:
    Zinc Plated with PTFE Liner
    Lubrication:
    None
    Static Load:
    12,814 lbs
    Dynamic Load:
    9,487 lbs
    Country of Origin:
    China
    Interchange Numbers:
    COS22EC
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    COS22EC PTFE Lined Rod-End Ball Joint Bearing with 22mm bore and Right Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.

    Sizes: 22mm Bore x 48mm Rod x M22x1.5 Thread Size

    Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.

    Product Videos

    Custom Field

    Inner Diameter 22mm
    Outer Diameter 48mm
    Overall Height 111mm
    Base to Center 84mm
    Thread Size M22x1.5
    Thread Direction Right Hand
    Ball Material Chrome Steel SAE-52100
    Housing Material Zinc Plated with PTFE Liner
    Lubrication None
    Static Load 12,814 lbs
    Dynamic Load 9,487 lbs
    Country of Origin China
    Interchange Numbers COS22EC
