2 Bolt Flange Bearings

1-1/16 bore SBPFL206-17 Pressed Steel 2 Bolt Flange Set Screw Ball Bearing

SKU: SBPFL206-17

Free shipping on most orders
Ships from Glendale, CA

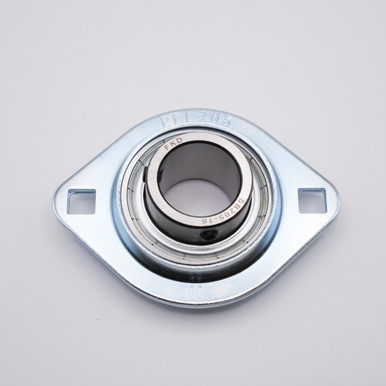

SBPFL206-17 Pressed Steel 2 Bolt Flange Set Screw Unit 1-1/16" Bore Top View

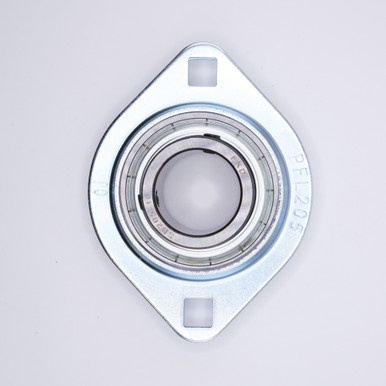

SBPFL206-17 Pressed Steel 2 Bolt Flange Set Screw Unit 1-1/16" Bore Bottom View

SBPFL206-17 Pressed Steel 2 Bolt Flange Set Screw Unit 1-1/16" Bore Side View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	1-1/16"
Overall Length	4-29/64"
Bolt-hole spacing	3-9/16"
Overall Width	3-5/16"

Construction

Bearing Material	Chrome Steel SAE-52100
Housing Material	Pressed Steel
Lubrication	Chevron SRI-2 Grease
Country of Origin	China

Performance

Static Load	2,570 lbs
Dynamic Load	4,377 lbs
Speed Limit	5,300 RPM

Interchange numbers 13

ENPFL-206-17S
UBPFL-206-17S
JELPFL206-017
FT 1-1/16 FM
AELPFL206-101
SSFT-1-1/16E
RAT 1-1/16
F2BSLX-1-1/16
FHPFLR206-17
FXR-U217N
BPFL6-1-1/16
RA017NPPB+62MST
PTF-1-1/16

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

SBPFL206-17 Pressed Steel 2-Bolt Flange Unit

Key Features

SBPFL206-17 is a Pressed Steel 2-Bolt Flange Housing in combination with a Chrome Steel Set Screw Insert Ball Bearing. This Unit features two set screws, located on the extended inner ring of the insert, which can be tightened onto a shaft. Our SBPFL206-17 Pressed Steel Units are pre-Lubricated with Grease, ensuring they are ready for use upon delivery.

Applications/Industries

SBPFL206-17 Pressed Steel 2-Bolt Flange units are widely used in various applications such as HVAC Systems, Manufacturing Equipment, Agriculture, Automotives, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, among others.
