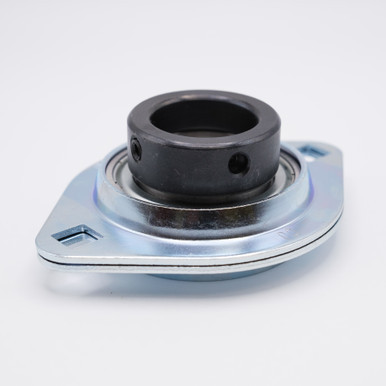

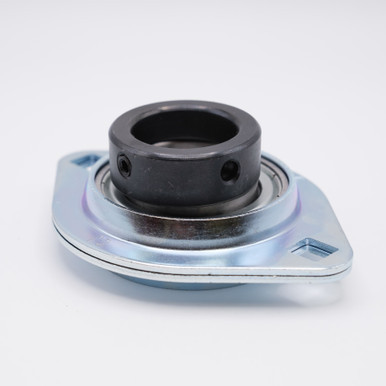

• SAPFL206-17 Pressed Steel 2 Bolt Flange Locking Collar Ball Bearing Shaft Size 1-1/16" Side View

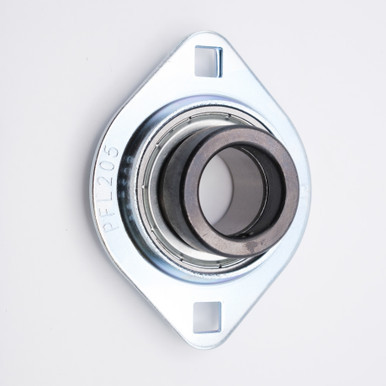

  • SAPFL206-17 Pressed Steel 2 Bolt Flange Locking Collar Ball Bearing Shaft Size 1-1/16" Top View
  • SAPFL206-17 Pressed Steel 2 Bolt Flange Locking Collar Ball Bearing Shaft Size 1-1/16" Side View

    • SAPFL206-17 Pressed Steel 2 Bolt Flange Locking Collar Ball Bearing Shaft Size 1-1/16

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SAPFL206-17
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-1/16"
    Overall Length:
    4-7/16"
    Overall Height:
    3-5/16"
    Bolt Hole to Bolt Hole:
    3-9/16"
    Housing Material:
    Pressed Steel
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,570 lbf
    Dynamic Load:
    4,377 lbf
    Speed Limit:
    5,300 RPM
    Country of Origin:
    China
    Interchange Numbers:
    ENPFL-206-17S, UBPFL-206-17S, JELPFL206-017, FT 1-1/16 FM, AELPFL206-101, SSFT-1-1/16E, RAT 1-1/16, F2BSLX-1-1/16, FHPFLR206-17, FXR-U217N, BPFL6-1-1/16, RA017NPPB+62MST, PTF-1-1/16

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SAPFL206-17 Pressed Steel 2-Bolt Flange Unit

    Key Features

    SAPFL206-17 is a Pressed Steel 2-Bolt Flange Housing in combination with a Light-duty Eccentric Locking Collar Insert Bearing. This Pressed Steel Unit uses a machined collar equipped with a single set screw to tighten and lock onto a shaft. This eccentric locking collar system does less damage to the shaft than a normal set screw lock and is recommended for most applications except where reversing shaft rotation is involved. Our SAPFL206-17 Pressed Steel Flange Units are pre-Lubricated with Grease, ensuring they are ready for immediate use upon delivery.

    Applications/Industries

    SAPFL206-17 Pressed Steel 2-bolt Flange units are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Automotives, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, Farm Machinery, among others.

    Product Videos

    Custom Field

    Inner Diameter 1-1/16"
    Overall Length 4-7/16"
    Overall Height 3-5/16"
    Bolt Hole to Bolt Hole 3-9/16"
    Housing Material Pressed Steel
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 2,570 lbf
    Dynamic Load 4,377 lbf
    Speed Limit 5,300 RPM
    Country of Origin China
    Interchange Numbers ENPFL-206-17S, UBPFL-206-17S, JELPFL206-017, FT 1-1/16 FM, AELPFL206-101, SSFT-1-1/16E, RAT 1-1/16, F2BSLX-1-1/16, FHPFLR206-17, FXR-U217N, BPFL6-1-1/16, RA017NPPB+62MST, PTF-1-1/16
