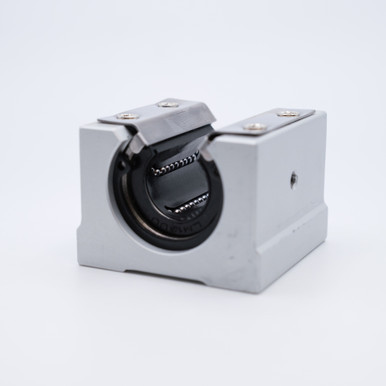

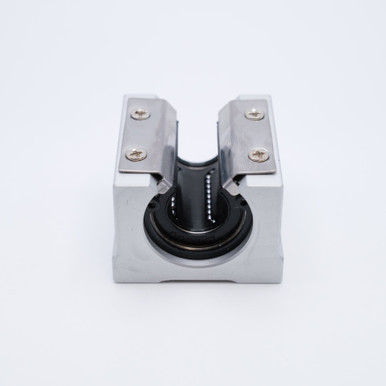

    • SME25UU Open Case Linear Motion Bearing 25mm Bore
  • SME25UU Open Case Linear Motion Bearing 25mm Bore

    (You save )
    Write a Review
    SKU:
    SME25UU
    Minimum Purchase:
    50 units
    Bore Size:
    25mm
    Base to Center:
    1-1/16" (27mm)
    Overall Width:
    2-23/64" (60mm)
    Overall Length:
    2-9/16" (65mm)
    Height:
    1-27/32" (47mm)
    Bolt Hole to Bolt Hole (Width):
    1-55/64" (40mm)
    Bolt Hole to Bolt Hole (Length):
    1-55/64" (40mm)
    Threads:
    M6x12
    Insert Bearing:
    LME25UUOP
    Static Load:
    353 lbs
    Dynamic Load:
    220 lbs
    Case Material:
    Aluminum
    Bearing Material:
    Chrome Steel
    Lubrication:
    Light Oil
    Interchange Numbers:
    SBR25UU

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    SME25UU Bearing is an Open Case Pillow Block Slide Motion Sealed Ball Bushing Linear Bearing with Polyamide Retainer.

    Used for high accuracy systems and any application where smooth linear sliding motion is needed.

    This linear bearing is great for you to replace the damaged linear bearings in your devices to improve them efficiency and save energy. Widely used in home appliances, industrial, machinery, electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, robotics, automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry. Smooth moving, low friction, high rigidity and long life. Economical, easy to maintain, and replace.

    Match #: SBR25UU

    Product Videos

    Custom Field

    Bore Size 25mm
    Base to Center 1-1/16" (27mm)
    Overall Width 2-23/64" (60mm)
    Overall Length 2-9/16" (65mm)
    Height 1-27/32" (47mm)
    Bolt Hole to Bolt Hole (Width) 1-55/64" (40mm)
    Bolt Hole to Bolt Hole (Length) 1-55/64" (40mm)
    Threads M6x12
    Insert Bearing LME25UUOP
    Static Load 353 lbs
    Dynamic Load 220 lbs
    Case Material Aluminum
    Bearing Material Chrome Steel
    Lubrication Light Oil
    Interchange Numbers SBR25UU
