Rod End Bearings

SI4TK Rod-End Bearing Right Hand Rod 4mm Bore PHSA4

SKU: SI4TK

Free shipping on most orders
Ships from Glendale, CA

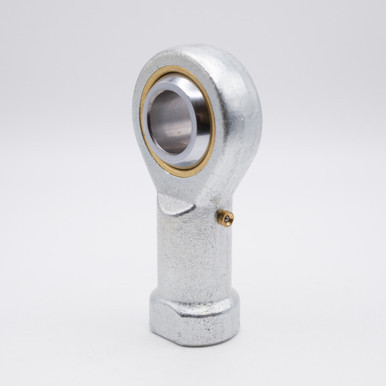

SI10TK Rod-End Bearing Right Hand Rod 4mm Bore Right Angled View

SI10TK Rod-End Bearing Right Hand Rod 4mm Bore Front View

SI10TK Rod-End Bearing Right Hand Rod 4mm Bore Flat Left Angled View

SI10TK Rod-End Bearing Right Hand Rod 4mm Bore Flat Right Angled View

SI10TK Rod-End Bearing Right Hand Rod 4mm Bore Flat View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	4mm
Outer Diameter	14mm
Overall Height	31mm
Base to center height	24mm
Thread Size	M4x0.7
Thread Direction	Right Hand

Construction

Housing Material	Die-Cast Zinc Alloy
Ball Material	Chrome Steel SAE-52100
Lubrication	Light Oil
Country of Origin	China

Performance

Static Load	1,052 lbs
Dynamic Load	558 lbs

Interchange numbers 5

SI4TK
PHSA4
GIKR4-PB
CW-M4
MW-M4

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

SI4TK Rod-End Bearing

Key Features

SI4TK bearing is a Female Rod End PilloBall Insert Type with a Right Handed Thread Ball Joint Bearing built in a body of Die-Cast Special Zinc Alloy. SI4TK Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. SI4TK bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.

Applications / Industries

SI4TK Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
