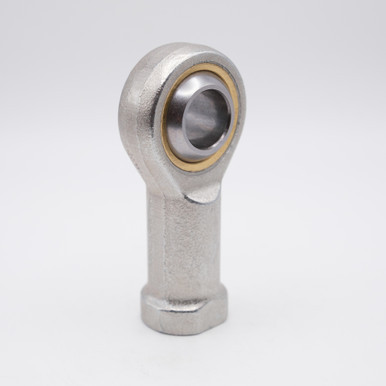

  • PHSA10 Rod-End Bearing Right Hand Rod 10mm Bore Left Angled View
  • PHSA10 Rod-End Bearing Right Hand Rod 10mm Bore Angled Bore View
  • PHSA10 Rod-End Bearing Right Hand Rod 10mm Bore Front View
  • PHSA10 Rod-End Bearing Right Hand Rod 10mm Bore Flat Right Angled View

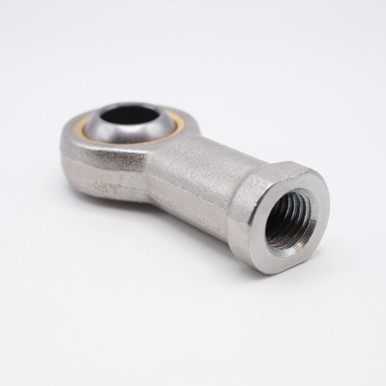

  • PHSA10 Rod-End Bearing Right Hand Rod 10mm Bore Flat Left Angled View
  • PHSA10 Rod-End Bearing Right Hand Rod 10mm Bore Flat Bottom View

    • PHSA10 Rod-End Bearing Right Hand Rod 10mm Bore SI10TK

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SI10TK
    Minimum Purchase:
    100 units
    Inner Diameter:
    10mm
    Outer Diameter:
    28mm
    Overall Height:
    58mm
    Base to Center:
    43mm
    Thread Size:
    M10x1.5
    Thread Direction:
    Right Hand
    Ball Material:
    Chrome Steel SAE-52100
    Housing Material:
    Nickel Plated
    Lubrication:
    Light Oil
    Static Load:
    2,945 lbf
    Country of Origin:
    China
    Interchange Numbers:
    SI10TK, PHSA10, GIKR10-PB, CW-M10, MW-M10

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHSA10 Rod-End Bearing

    Key Features

    PHSA10 bearing is a Female Rod End PilloBall Insert Type with a Right Handed Thread Ball Joint Bearing built in a Nickel Plated Body. SI10TK Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. SI10TK bearings consists of a spherical swivel with a cylindrical bore pressed into a female rod-end housing with a right hand thread.

    Applications / Industries

    PHSA10 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Automotive Components, Industrial Machines, Printing Equipment, Conveyor Systems, Automation Control Components, among others.

    Product Videos

    Custom Field

    Inner Diameter 10mm
    Outer Diameter 28mm
    Overall Height 58mm
    Base to Center 43mm
    Thread Size M10x1.5
    Thread Direction Right Hand
    Ball Material Chrome Steel SAE-52100
    Housing Material Nickel Plated
    Lubrication Light Oil
    Static Load 2,945 lbf
    Country of Origin China
    Interchange Numbers SI10TK, PHSA10, GIKR10-PB, CW-M10, MW-M10
