Product Description

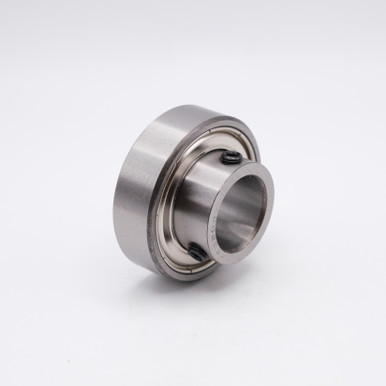

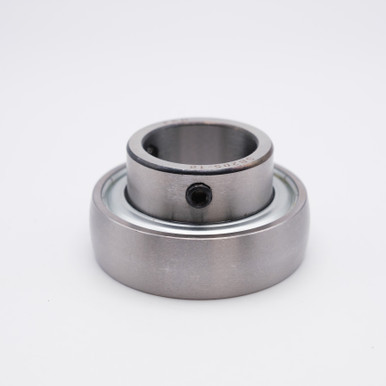

SB200 Bearing Series Set Screw Insert Ball Bearing Sealed and Pre-Lubricated with Grease
SB200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity.
Match #: FHS206-20, B6-20, SB206-20N, SB206-20G, AS206-020
Product Videos
Custom Field
Inner Diameter 1-1/4"
Outer Diameter 62mm
Inner Race Width 16mm
Outer Race Width 30mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 2,500 lbs
Dynamic Load 4,300 lbs
Speed Limit 5,300 RPM
Interchange Numbers FHS206-20, B6-20, SB206-20N, SB206-20G, AS206-020
