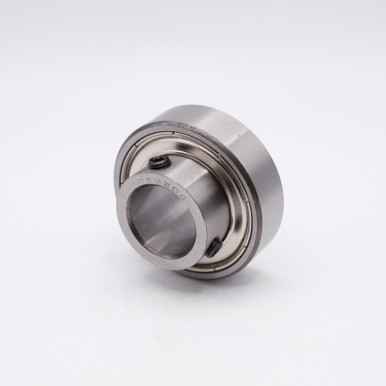

  • CSB206-20 Insert Ball Bearing 1-1/4x62x30
  • CSB206-20 Insert Ball Bearing 1-1/4x62x30 Side View
  • CSB206-20 Insert Ball Bearing 1-1/4x62x30 Back View
  • CSB206-20 Insert Ball Bearing 1-1/4x62x30 Flat View
  • CSB206-20 Insert Ball Bearing 1-1/4x62x30 Front View
  • CSB206-20 Insert Ball Bearing 1-1/4x62x30 Side View CSB206-20 Insert Ball Bearing 1-1/4x62x30 Back View CSB206-20 Insert Ball Bearing 1-1/4x62x30 Flat View CSB206-20 Insert Ball Bearing 1-1/4x62x30 Front View

    CSB206-20 Insert Ball Bearing 1-1/4x62x30

    (You save )
    (No reviews yet) Write a Review
    SKU:
    CSB206-20
    Minimum Purchase:
    50 units
    Inner Diameter:
    1-1/4"
    Outer Diameter:
    62mm
    Inner Race Width:
    16mm
    Outer Race Width:
    30mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbs
    Dynamic Load:
    4,300 lbs
    Speed Limit:
    5,300 RPM
    Interchange Numbers:
    FHSR206-20, BR206-20, SLS-120, CSB206-20N, SL-20

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    CSB200 Series Bearing is Precision Insert Ball Bearing Cylindrical Outer with Set Screw and Pre-Lubricated with Grease

    CSB200 Series Insert Bearing has two set screws on the inner race for securing to the shaft. It has a cylindrical outer race that is pre-lubed and engineered for light duty use. This type bearing is self-aligning for the standard load capacity. The standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite to the collar to make it interchangeable to all manufacturers which makes it more efficient.

    Match#: FHSR206-20, BR206-20, SLS-120, CSB206-20N, SL-20

    Product Videos

    Custom Field

    Inner Diameter 1-1/4"
    Outer Diameter 62mm
    Inner Race Width 16mm
    Outer Race Width 30mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbs
    Dynamic Load 4,300 lbs
    Speed Limit 5,300 RPM
    Interchange Numbers FHSR206-20, BR206-20, SLS-120, CSB206-20N, SL-20
