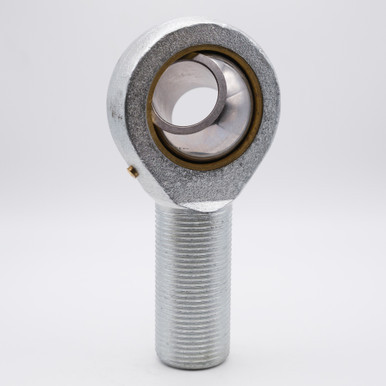

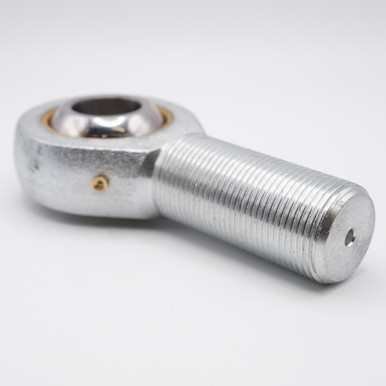

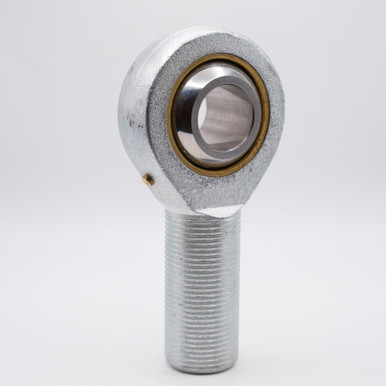

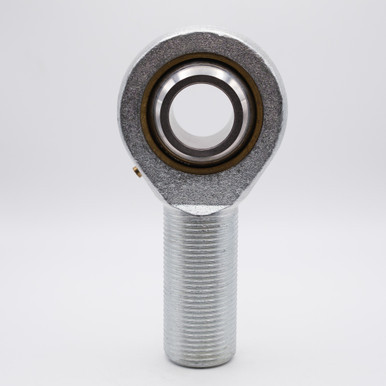

POSB10 Pilloball Male Rod End Bearing Right Hand Thread 5/8" Bore

Write a Review

SKU:: POSB10
Minimum Purchase:: 50 units
Bore Size:: 5/8" (15.875mm)
Base to Center:: 2-5/8" (66.68mm)
Thread:: -18UNF ( .6250")
Overall Height:: 3-3/8" (85.73mm)
Outer Diameter:: 1-1/2" (38.10mm)
Static Load:: 8,835 lbs
Dynamic Load:: 4,496 lbs
Ball Material:: Chrome Steel
Housing Material:: Nickel Plated
Interchange Numbers:: HM10, HM10G, TRE-10, TRE10N, TRE-10N, MM-10, MM-10Z, POSB10Z
Thread Direction:: Right Hand

POSB10 Bearing is a Rod End PilloBall Insert Bearing, Right Handed Thread and Zinc Plated

Match #: HM10, HM10G, TRE-10, TRE10N, TRE-10N, MM-10, MM-10Z, POSB10Z

Bore Size 5/8" (15.875mm)

Base to Center 2-5/8" (66.68mm)

Thread -18UNF ( .6250")

Overall Height 3-3/8" (85.73mm)

Outer Diameter 1-1/2" (38.10mm)

Static Load 8,835 lbs

Dynamic Load 4,496 lbs

Ball Material Chrome Steel

Housing Material Nickel Plated

Interchange Numbers HM10, HM10G, TRE-10, TRE10N, TRE-10N, MM-10, MM-10Z, POSB10Z

Thread Direction Right Hand
