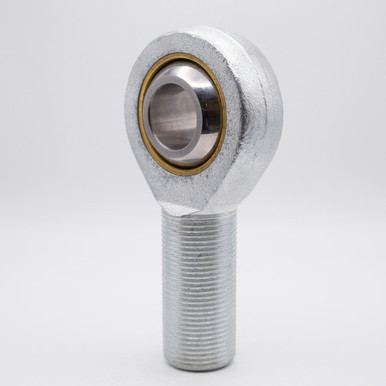

• POS25L Rod-End Bearing Right Hand 25mm Side View
  • POS25L Rod-End Bearing Right Hand 25mm Side View
  • POS25L Rod-End Bearing Right Hand 25mm Side View
  • POS25L Rod-End Bearing Right Hand 25mm Front View
  • POS25L Rod-End Bearing Right Hand 25mm Flat View

    • POS25L 25mm Lubrication Type PilloBall Male Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    POS25L
    Minimum Purchase:
    100 units
    Inner Diameter:
    25mm
    Base to Center:
    94mm
    Thread Size:
    M24x2
    Overall Height:
    124mm
    Outer Diameter:
    60mm
    Static Load:
    16,344 lbs
    Dynamic Load:
    10,386 lbs
    Thread Direction:
    Left Hand
    Interchange Numbers:
    GAL25-DO, JML25M, SMP25M, CB-25M, MB-25M, MB-25MT, POS25L, POS25 L
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    POS25L Bearing is Male Zinc Plated Rod End PilloBall Insert Type with Left Handed Thread Ball Joint Bearing, Chrome Steel, Protective Coated for Corrosion Resistance

    POS25L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MM-M25 bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GAL25-DO, JML25M, SMP25M, CB-25M, MB-25M, MB-25MT, POS25L, POS25 L

    Product Videos

    Custom Field

    Inner Diameter 25mm
    Base to Center 94mm
    Thread Size M24x2
    Overall Height 124mm
    Outer Diameter 60mm
    Static Load 16,344 lbs
    Dynamic Load 10,386 lbs
    Thread Direction Left Hand
    Interchange Numbers GAL25-DO, JML25M, SMP25M, CB-25M, MB-25M, MB-25MT, POS25L, POS25 L
