Rod End Bearings

POS18L 18mm Lubrication Type PilloBall Male Rod End Bearing Left Hand Thread

SKU: POS18L
  • Free shipping on most orders
  • Ships from Glendale, CA
  • POS18L Rod-End Bearing 18mm Bore Right Angled View
  • POS18L Rod-End Bearing 18mm Bore Left Angled View
  • POS18L Rod-End Bearing 18mm Bore Angled Bore View

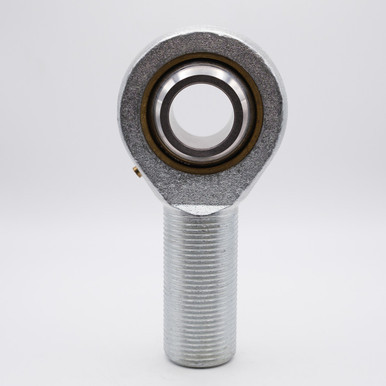

  • POS18L Rod-End Bearing 18mm Bore Front View

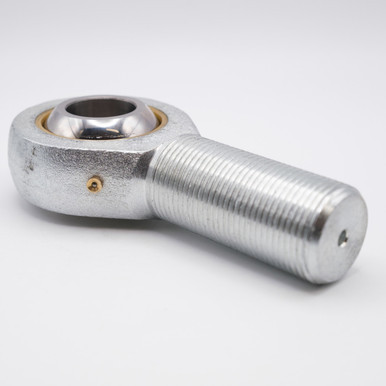

  • POS18L Rod-End Bearing 18mm Bore Flat View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)18mm
    Outer Diameter42mm
    Overall Height93mm
    Base to center height72mm
    Thread SizeM18x1.5
    Thread DirectionLeft Hand

    Construction

    Performance

    Static Load6,789 lbs
    Dynamic Load5,778 lbs

    Interchange numbers 8

    • GAL18-DO
    • JML18M
    • SMP18M
    • CB-18M
    • MB-18M
    • MB-18MT
    • POS18L
    • POS18 L
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    POS18L Bearing is Male Zinc Plated Rod End PilloBall Insert Type with Left Handed Thread Ball Joint Bearing, Chrome Steel, Protective Coated for Corrosion Resistance

    POS18L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MM-M18 bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GAL18-DO, JML18M, SMP18M, CB-18M, MB-18M, MB-18MT, POS18L, POS18 L
