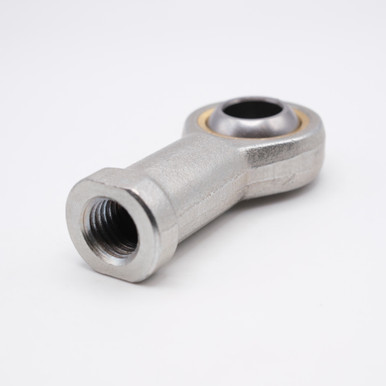

  • PHS25L Rod-End Bearing 25mm Bore Flat Right Angled View

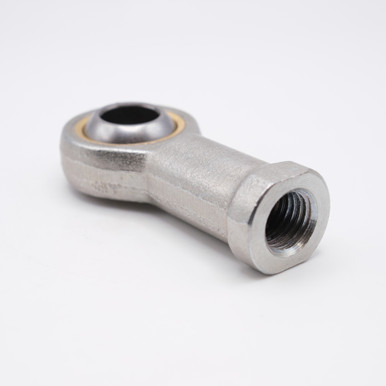

  • PHS25L Rod-End Bearing 25mm Bore Flat Left Angled View
  • PHS25L Rod-End Bearing 25mm Bore Bottom View

    • PHS25L 25mm Lubrication Type PilloBall Female Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS25L
    Minimum Purchase:
    100 units
    Bore Size:
    25mm
    Base to Center:
    94mm
    Thread:
    M24x2
    Overall Height:
    124mm
    Outer Diameter:
    60mm
    Static Load:
    16,344 lbs
    Dynamic Load:
    10,386 lbs
    Thread Direction:
    Left Hand
    Interchange Numbers:
    GIKR25-PBL, SIKOC25ML, CG-M25, MG-M25, AG-M25, PHSA25L

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS25L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR25-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M25L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR25-PBL, SIKOC25ML, CG-M25, MG-M25, AG-M25, PHSA25L

    Product Videos

    Custom Field

    Bore Size 25mm
    Base to Center 94mm
    Thread M24x2
    Overall Height 124mm
    Outer Diameter 60mm
    Static Load 16,344 lbs
    Dynamic Load 10,386 lbs
    Thread Direction Left Hand
    Interchange Numbers GIKR25-PBL, SIKOC25ML, CG-M25, MG-M25, AG-M25, PHSA25L
