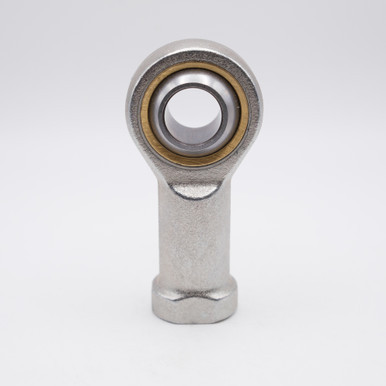

  • PHS18 Rod-End Bearing Right Hand 18mm Bore Front View
  • PHS18 Rod-End Bearing Right Hand 18mm Bore Flat Right Angled View
  • PHS18 Rod-End Bearing Right Hand 18mm Bore Flat Left Angled View
  • PHS18 Rod-End Bearing Right Hand 18mm Bore Bottom View

    • PHS18 18mm Lubrication Type PilloBall Female Rod End Bearing Right Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS18
    Minimum Purchase:
    100 units
    Inner Diameter:
    18mm
    Base to Center:
    71mm
    Thread Size:
    M18x1.5
    Overall Height:
    92mm
    Outer Diameter:
    42mm
    Static Load:
    6,789 lbs
    Dynamic Load:
    5,778 lbs
    Thread Direction:
    Right Hand
    Interchange Numbers:
    GIKR18-PB, SIKOC18M, CW-M18, MW-M18, AW-M18, PHSA18

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS18 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR18-PB bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M18 Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR18-PB, SIKOC18M, CW-M18, MW-M18, AW-M18, PHSA18

    Product Videos

    Custom Field

    Inner Diameter 18mm
    Base to Center 71mm
    Thread Size M18x1.5
    Overall Height 92mm
    Outer Diameter 42mm
    Static Load 6,789 lbs
    Dynamic Load 5,778 lbs
    Thread Direction Right Hand
    Interchange Numbers GIKR18-PB, SIKOC18M, CW-M18, MW-M18, AW-M18, PHSA18
