Product Description

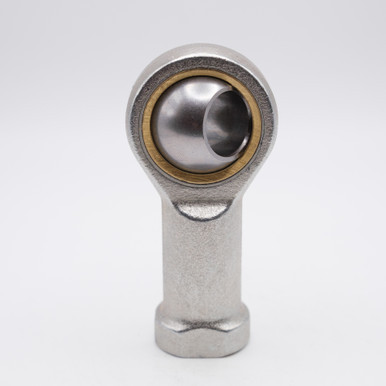

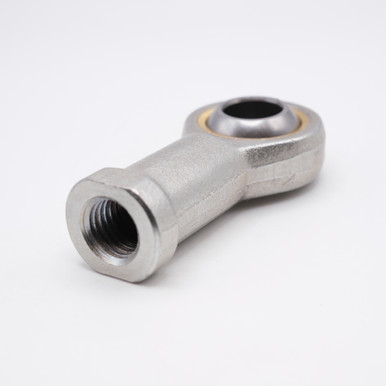

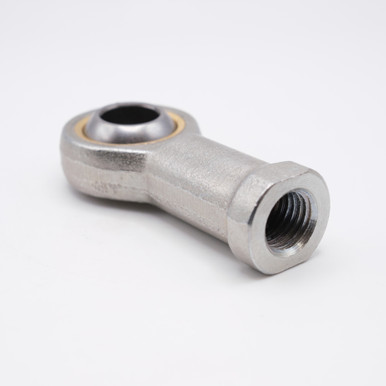

PHS18L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR18-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M18L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
Match#: GIKR18-PBL, SIKOC18ML, CG-M18, MG-M18, AG-M18, PHSA18L
Product Videos
Custom Field
Bore Size 18mm
Base to Center 71mm
Thread M18x1.5
Overall Height 92mm
Outer Diameter 42mm
Static Load 6,789 lbs
Dynamic Load 5,778 lbs
Thread Direction Left Hand
Interchange Numbers GIKR18-PBL, SIKOC18ML, CG-M18, MG-M18, AG-M18, PHSA18L
