Product Description

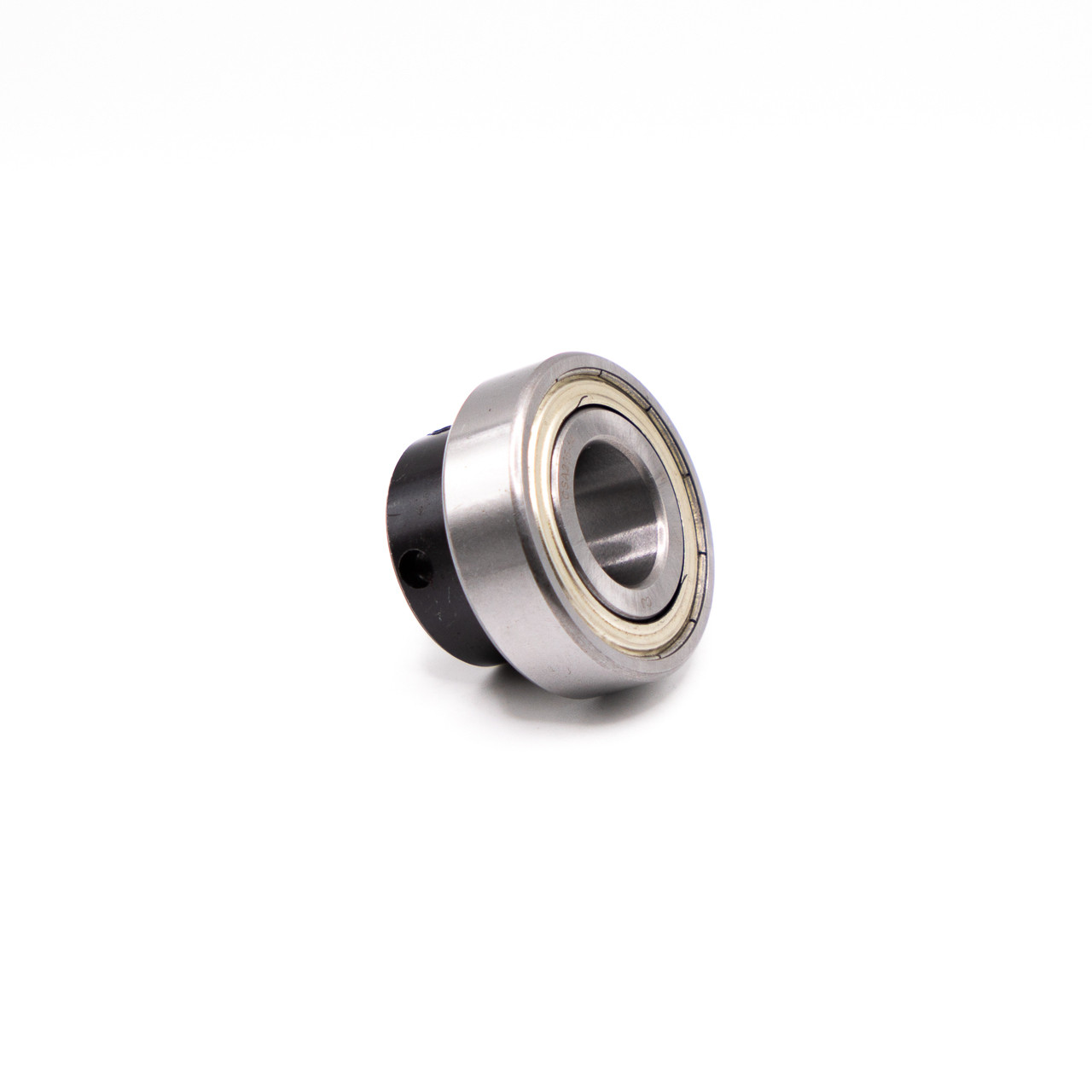

Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease
CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.
CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.
Match #: FHR210, KHR210, AELS210Product Videos
Custom Field
Inner Diameter 50mm
Outer Diameter 90mm
Inner Race Width 20mm
Outer Race Width 43.7mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 5,190 lbs
Dynamic Load 7,900 lbs
Speed Limit 3,400 RPM
Interchange Numbers FHR210, KHR210, AELS210
