• CSA210 Insert Ball Bearing 50x90x43.7 Side View
  • CSA210 Insert Ball Bearing 50x90x43.7 Back View
  • CSA210 Insert Ball Bearing 50x90x43.7 Flat View
  • CSA210 Insert Ball Bearing 50x90x43.7 Front View
  • CSA210 Insert Ball Bearing 50x90x43.7 Separated Front View
  • CSA210 Insert Ball Bearing 50x90x43.7 Separated Side View

    • CSA210 Insert Ball Bearing 50x90x43.7

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    CSA210
    Minimum Purchase:
    100 units
    Inner Diameter:
    50mm
    Outer Diameter:
    90mm
    Inner Race Width:
    20mm
    Outer Race Width:
    43.7mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    5,190 lbs
    Dynamic Load:
    7,900 lbs
    Speed Limit:
    3,400 RPM
    Interchange Numbers:
    FHR210, KHR210, AELS210

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

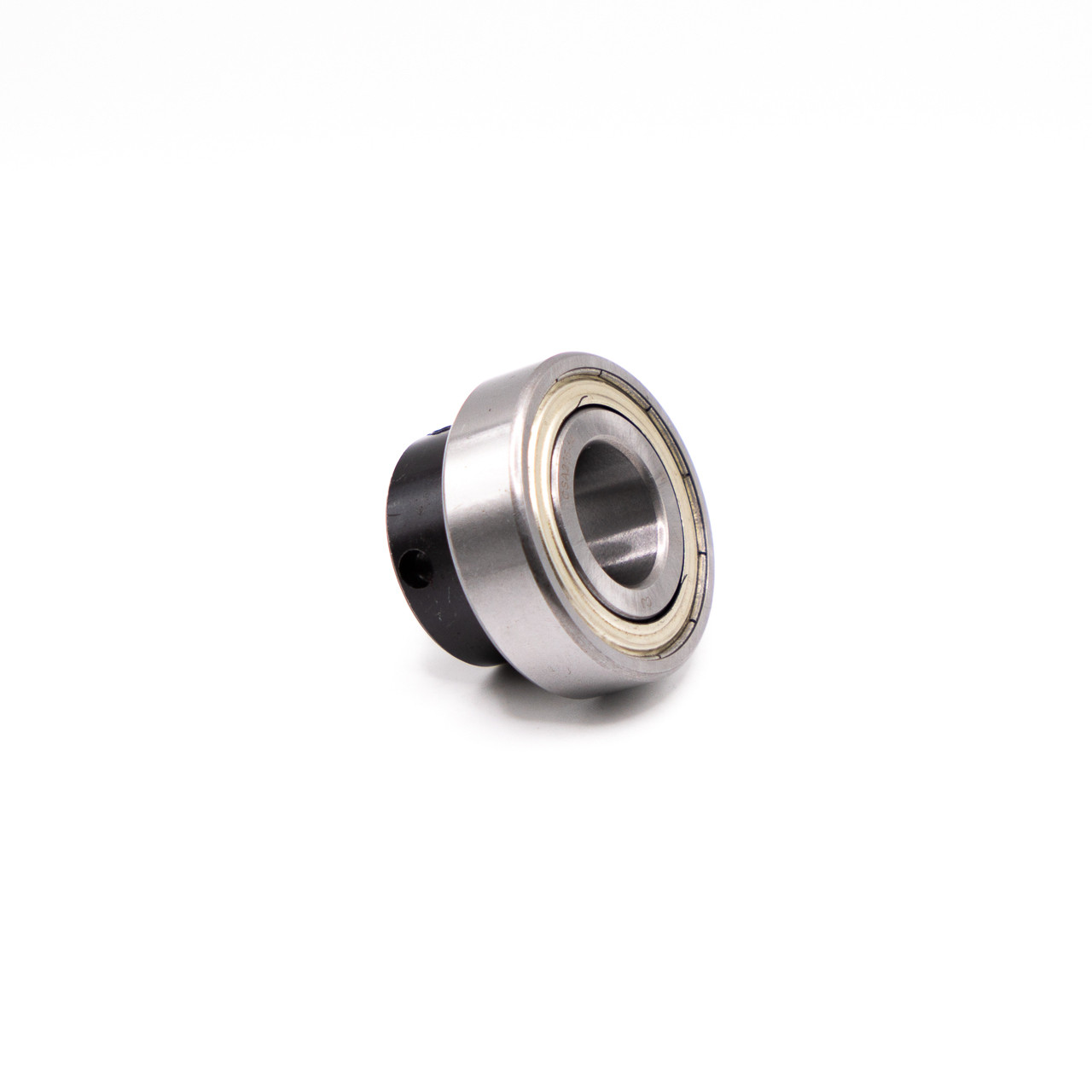

    Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease

    CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.

    CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

    Match #: FHR210, KHR210, AELS210

    Product Videos

    Custom Field

    Inner Diameter 50mm
    Outer Diameter 90mm
    Inner Race Width 20mm
    Outer Race Width 43.7mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 5,190 lbs
    Dynamic Load 7,900 lbs
    Speed Limit 3,400 RPM
    Interchange Numbers FHR210, KHR210, AELS210
