• CSA206 Eccentric Bore Insert Ball Bearing 30x62x16mm Back Right Side View
  • CSA206 Eccentric Bore Insert Ball Bearing 30x62x16mm Back Left Side View
  • CSA206 Eccentric Bore Insert Ball Bearing 30x62x16mm Back View

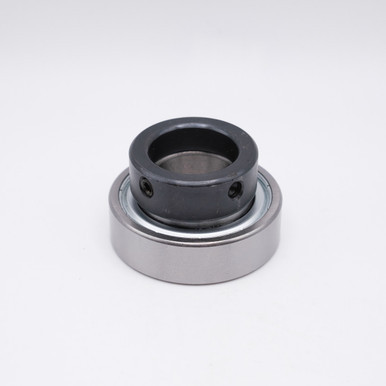

  • CSA206 Eccentric Bore Insert Ball Bearing 30x62x16mm Front View

    • CSA206 Insert Ball Bearing 30x62x35.7

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    CSA206
    Minimum Purchase:
    100 units
    Inner Diameter:
    30mm
    Outer Diameter:
    62mm
    Inner Race Width:
    16mm
    Outer Race Width:
    35.7mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbs
    Dynamic Load:
    4,300 lbs
    Speed Limit:
    5,300 RPM
    Interchange Numbers:
    FHR206, KHR206, AELS206

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

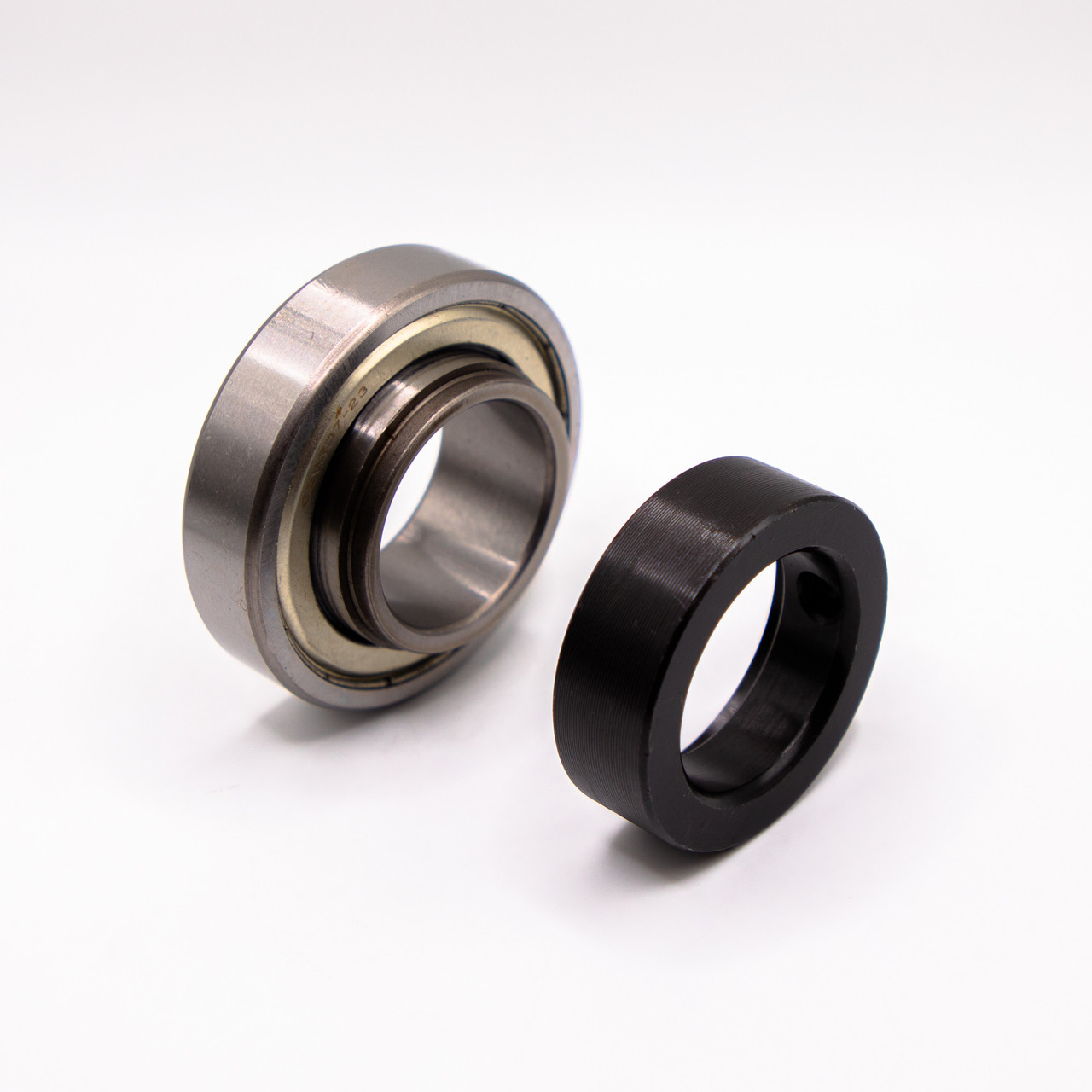

    Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease

    CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.

    CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

    Match #: FHR206, KHR206, AELS206

    Product Videos

    Custom Field

    Inner Diameter 30mm
    Outer Diameter 62mm
    Inner Race Width 16mm
    Outer Race Width 35.7mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbs
    Dynamic Load 4,300 lbs
    Speed Limit 5,300 RPM
    Interchange Numbers FHR206, KHR206, AELS206
