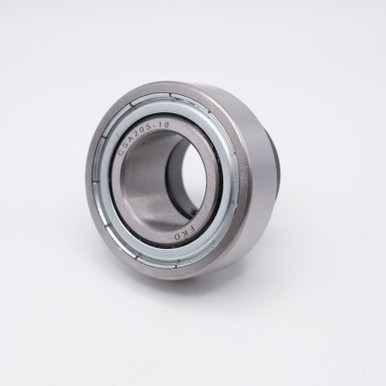

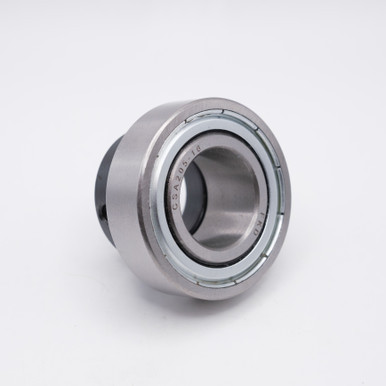

  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7
  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Side View
  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Back View
  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Flat View
  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Front View
  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Separated Front View
  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Separated Side View
  • CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Side View CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Back View CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Flat View CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Front View CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Separated Front View CSA206-19 Insert Ball Bearing 1-3/16x62x35.7 Separated Side View

    CSA206-19 Insert Ball Bearing 1-3/16x62x35.7

    (You save )
    (No reviews yet) Write a Review
    SKU:
    CSA206-19
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-3/16"
    Outer Diameter:
    62mm
    Inner Race Width:
    16mm
    Outer Race Width:
    35.7mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbs
    Dynamic Load:
    4,300 lbs
    Speed Limit:
    5,300 RPM
    Interchange Numbers:
    FHR206-19, KHR206-19, AELS206-019N

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease

    CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.

    CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

    Match #: FHR206-19, KHR206-19, AELS206-019N

    Product Videos

    Custom Field

    Inner Diameter 1-3/16"
    Outer Diameter 62mm
    Inner Race Width 16mm
    Outer Race Width 35.7mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbs
    Dynamic Load 4,300 lbs
    Speed Limit 5,300 RPM
    Interchange Numbers FHR206-19, KHR206-19, AELS206-019N
