  • Home
  • Insert Bearings
  • SA Series
  • SA206-17 Insert Ball Bearing 1-1/16x62x35.7
  • SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Side View
  • SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Back View
  • SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Flat View
  • SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Separated Top View
  • SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Separated Side View
  • SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Side View SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Back View SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Flat View SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Separated Top View SA206-17 Insert Ball Bearing 1-1/16x62x35.7 Separated Side View

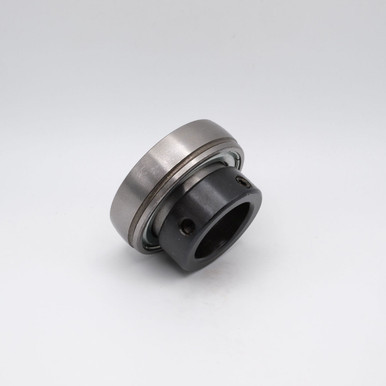

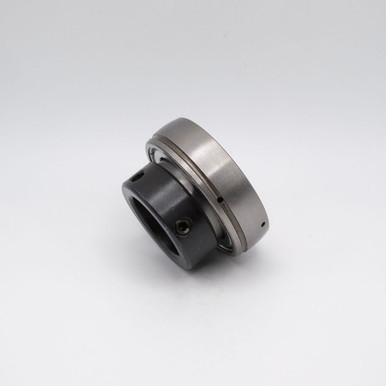

    SA206-17 Insert Ball Bearing 1-1/16x62x35.7

    (You save )
    (No reviews yet) Write a Review
    SKU:
    SA206-17
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-1/16"
    Outer Diameter:
    62mm
    Inner Race Width:
    16mm
    Outer Race Width:
    35.7mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbs
    Dynamic Load:
    4,300 lbs
    Speed Limit:
    5,300 RPM
    Interchange Numbers:
    FH206-017G, SA206-017N, KH206-017, SA206-017G, AEL206-017N, YET206-017

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    SA200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing Sealed and Pre-Lubricated with Grease

    SA200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.

    Match#: FH206-017G, SA206-017N, KH206-017, SA206-017G, AEL206-017N, YET206-017

    Product Videos

    Custom Field

    Inner Diameter 1-1/16"
    Outer Diameter 62mm
    Inner Race Width 16mm
    Outer Race Width 35.7mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbs
    Dynamic Load 4,300 lbs
    Speed Limit 5,300 RPM
    Interchange Numbers FH206-017G, SA206-017N, KH206-017, SA206-017G, AEL206-017N, YET206-017
